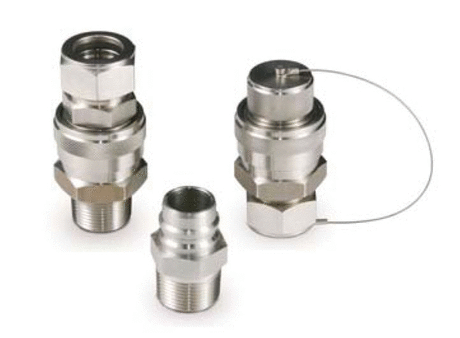

SFQC Full Flow Quick Connect Bodies
$39.14 – $72.18
See individual part details below
Access our SFQC full flow quick connect series featuring simple push-pull operation. Our full flow quick connect bodies provide tool-free connections with unrestricted flow capacity for your fluid system. Browse below to request a quote for your specific component.
Looking for Swagelok® alternatives? Enter a part number in our search to find compatible alternatives.
Description
Proven ball – lock mechanism provides positive connection. Simple push – pull action to connect and disconnect lines – no tools required. Compact coupling offers full flow without orifice restrictions. O-ring is easily replaced without disassembling
| Inch/Metric | Inch |
|---|---|
| Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 70 (20 ºC) Temperature | 413bar, 600psig |
| Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 400 (204 ºC) Temperature | 6.8bar, 100psig |
| Pressure Rating Brass with NBR O-Ring at 250 (121 ºC) Temperature | 6.8bar, 100psig |
| Superlok Part Type | Connect Body |
Available Sizes
SFQC Full Flow Quick Connect Bodies SFQC2B-F4N
SFQC 1/4 in. x 1/4 in. Female National Pipe Taper (FNPT) Full Flow Quick Connect Body
$39.14
$39.14
SFQC Full Flow Quick Connect Bodies SFQC2B-M4N
SFQC 1/4 in. x 1/4 in. Male National Pipe Taper (MNPT) T Full Flow Quick Connect Body
$44.29
$44.29
SFQC Full Flow Quick Connect Bodies SFQC2B-S4
SFQC 1/4 in. x 1/4 in. Tube Outside Diameter Full Flow Quick Connect Body
$52.53
$52.53
SFQC Full Flow Quick Connect Bodies SFQC2B-S6
SFQC 1/4 in. x 3/8 in. Tube Outside Diameter Full Flow Quick Connect Body
$61.70
$61.70
SFQC Full Flow Quick Connect Bodies SFQC3B-M8N
SFQC 1/2 in. x 1/2 in. Male National Pipe Taper (MNPT) Full Flow Quick Connect Body
$70.97
$70.97
SFQC Full Flow Quick Connect Bodies SFQC3B-S8
SFQC 1/2 in. x 1/2 in. Tube Outside Diameter Full Flow Quick Connect Body
$72.18
$72.18
