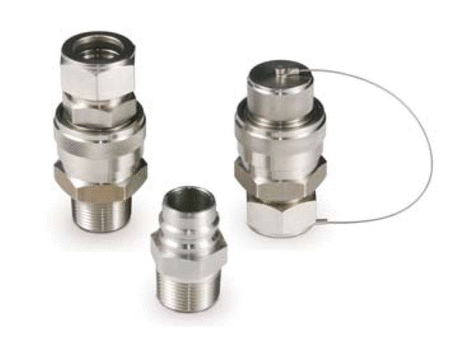

SFQC Full Flow Quick Connect Body Protectors
$18.54 – $18.54
See individual part details below
Access our complete line of SFQC Full Flow Quick Connect Body Protectors featuring proven ball-lock mechanism designs. Our selection includes compact couplings with full flow capability and no orifice restrictions for your fluid system. Browse below to instantly request a quote or purchase the quick connect protectors with easy O-ring replacement functionality.
Looking for Swagelok® alternatives? Enter a part number in our search to find compatible alternatives.
Proven ball – lock mechanism provides positive connection. Simple push – pull action to connect and disconnect lines – no tools required. Compact coupling offers full flow without orifice restrictions. O-ring is easily replaced without disassembling
| Inch/Metric | Inch |
|---|---|
| Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 70 (20 ºC) Temperature | 413bar, 600psig |
| Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 400 (204 ºC) Temperature | 6.8bar, 100psig |
| Pressure Rating Brass with NBR O-Ring at 250 (121 ºC) Temperature | 6.8bar, 100psig |
| Pressure Rating Brass with Nitrile Butadiene Rubber (NBR) O-Ring at 70 (20 ºC) Temperature | 275bar, 4000psig |
| Superlok Part Type | Connect Body Protector |
