SFQC2P-M4N
$20.09

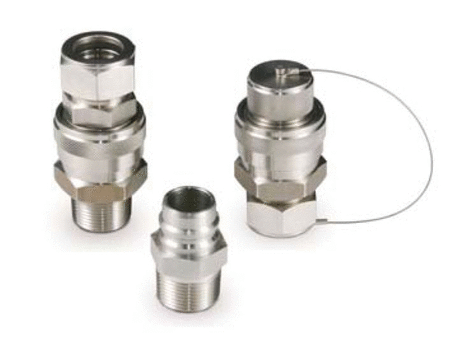

SFQC 1/4 in. x 1/4 in. Male National Pipe Taper (MNPT) Full Flow Quick Connect Stem
Description
SFQC 1/4 in. x 1/4 in. Male National Pipe Taper (MNPT) Full Flow Quick Connect Stem
Proven ball – lock mechanism provides positive connection. Simple push – pull action to connect and disconnect lines – no tools required. Compact coupling offers full flow without orifice restrictions. O-ring is easily replaced without disassembling
| Cv Coefficient | 1.7 |
|---|---|
| End Size | 44200in |
| End Type | Male National Pipe Thread (MNPT) |
| Inch/Metric | Inch |
| Insertion Depth | 0.78in, 19.8mm |
| Orifice [Min] | 6.1mm |
| Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 70 (20 ºC) Temperature | 413bar, 600psig |
| Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 400 (204 ºC) Temperature | 6.8bar, 100psig |
| Pressure Rating Brass with NBR O-Ring at 250 (121 ºC) Temperature | 6.8bar, 100psig |
| Pressure Rating Brass with Nitrile Butadiene Rubber (NBR) O-Ring at 70 (20 ºC) Temperature | 275bar, 4000psig |

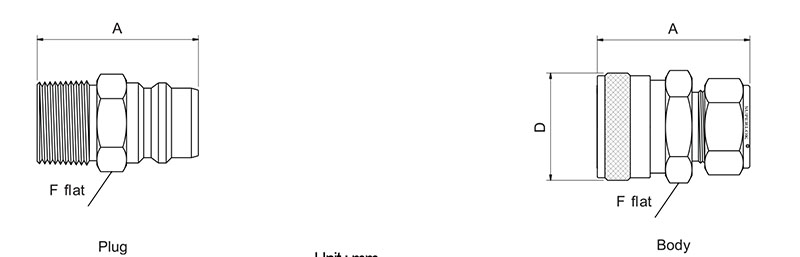

| Dimension A | 40.4mm |
|---|---|
| Dimension F | 14.3mm |
