SBFC 2-2N
$32.07

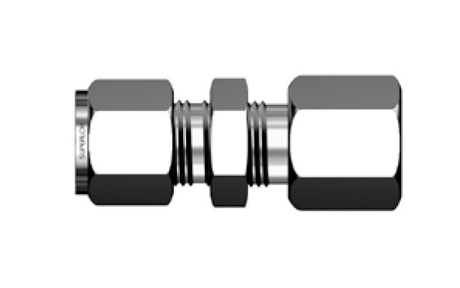

SBFC 1/8 in. Tube Outside Diameter D x 1/8 in. Female National Pipe Taper (FNPT) Bulkhead Female Connector
Description
SBFC 1/8 in. Tube Outside Diameter D x 1/8 in. Female National Pipe Taper (FNPT) Bulkhead Female Connector
| End Size | 1/8in |
|---|---|
| End Type | National Pipe Thread (NPT) |
| Inch/Metric | Inch |
| Pannel Hole Drill Size | 8.33mm |
| Pannel Thickness [Max] | 12.70mm |
| Tube Outside Diameter D | 1/8in |
| Width Across Flats h | 9/16in, mm |
| Width Across Flats h1 | 1/2in, mm |
| Dimension A | 12.70mm |
|---|---|
| Dimension I | 38.10mm |
| Dimension I1 | 24.63mm |
| Dimension L | 44.70mm |
| Dimension L1 | 31.24mm |
| Dimension d [Min] | 2.28mm |
