SBMC Bulkhead Male Connectors

$14.92 – $97.44

Access our complete line of bulkhead female connector options for your fluid system requirements. Our selection ensures reliable through-wall connections. Browse below to instantly request a quote or purchase the bulkhead female connector and female bulkhead connector you need.

Looking for Swagelok® alternatives? Enter a part number in our search to find compatible alternatives.

Request Quote (805) 658-2043

Description

Specifications
End Type	National Pipe Thread (NPT)
Inch/Metric	Inch
Superlok Part Type	Male Connector

Available Sizes

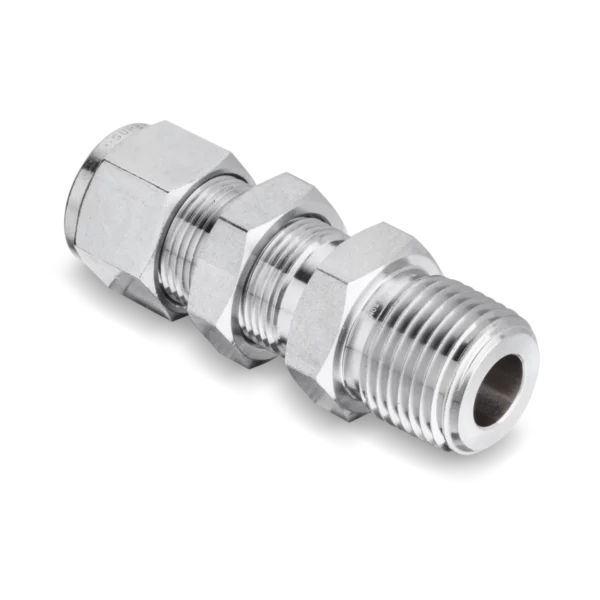

SBMC Bulkhead Male Connectors SBMC 2-2N

SBMC 1/8 in. Tube Outside Diameter D x 1/8 in. Male National Pipe Taper (MNPT) Bulkhead Male Connector

$22.22

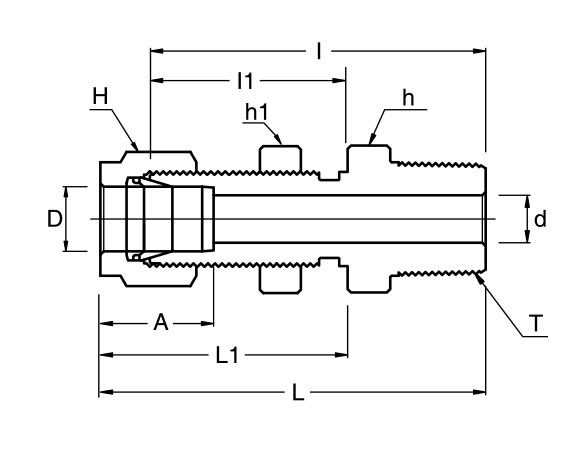

Dimensions
Dimension A	12.70mm
Dimension I	39.87mm
Dimension I1	24.63mm
Dimension L	46.48mm
Dimension L1	31.24mm
Dimension d [Min]	2.28mm

Specifications
End Size	44204in
End Type	National Pipe Thread (NPT)
Inch/Metric	Inch
Pannel Hole Drill Size	8.33mm
Pannel Thickness [Max]	12.70mm
Tube Outside Diameter D	1/8in
Width Across Flats h	1/2in
Width Across Flats h1	1/2in

SBMC Bulkhead Male Connectors SBMC 4-2N

SBMC 1/4 in. Tube Outside Diameter D x 1/8 in. Male National Pipe Taper (MNPT) Bulkhead Male Connector

$14.92

Dimensions
Dimension A	15.24mm
Dimension I	42.16mm
Dimension I1	26.16mm
Dimension L	49.53mm
Dimension L1	33.52mm
Dimension d [Min]	4.82mm

Specifications
End Size	44204in
End Type	National Pipe Thread (NPT)
Inch/Metric	Inch
Pannel Hole Drill Size	11.50mm
Pannel Thickness [Max]	10.16mm
Tube Outside Diameter D	1/4in
Width Across Flats h	5/8in
Width Across Flats h1	5/8in

SBMC Bulkhead Male Connectors SBMC 4-4N

SBMC 1/4 in. Tube Outside Diameter D x 1/4 in. Male National Pipe Taper (MNPT) Bulkhead Male Connector

$14.92

Dimensions
Dimension A	15.24mm
Dimension I	46.73mm
Dimension I1	26.16mm
Dimension L	54.10mm
Dimension L1	33.52mm
Dimension d [Min]	4.82mm

Specifications
End Size	44200in
End Type	National Pipe Thread (NPT)
Inch/Metric	Inch
Pannel Hole Drill Size	11.50mm
Pannel Thickness [Max]	10.16mm
Tube Outside Diameter D	1/4in
Width Across Flats h	5/8in
Width Across Flats h1	5/8in

SBMC Bulkhead Male Connectors SBMC 6-4N

SBMC 3/8 in. Tube Outside Diameter D x 1/4 in. Male National Pipe Taper (MNPT) Bulkhead Male Connector

$18.60

Dimensions
Dimension A	16.76mm
Dimension I	50.03mm
Dimension I1	29.46mm
Dimension L	57.4mm
Dimension L1	36.83mm
Dimension d [Min]	7.11mm

Specifications
End Size	44200in
End Type	National Pipe Thread (NPT)
Inch/Metric	Inch
Pannel Hole Drill Size	14.68mm
Pannel Thickness [Max]	11.17mm
Tube Outside Diameter D	3/8in
Width Across Flats h	3/4in
Width Across Flats h1	3/4in

SBMC Bulkhead Male Connectors SBMC 6-6N

SBMC 3/8 in. Tube Outside Diameter D x 3/8 in. Male National Pipe Taper (MNPT) Bulkhead Male Connector

$24.62

Dimensions
Dimension A	16.76mm
Dimension I	50.03mm
Dimension I1	29.46mm
Dimension L	57.4mm
Dimension L1	36.83mm
Dimension d [Min]	7.11mm

Specifications
End Size	44263in
End Type	National Pipe Thread (NPT)
Inch/Metric	Inch
Pannel Hole Drill Size	14.68mm
Pannel Thickness [Max]	11.17mm
Tube Outside Diameter D	3/8in
Width Across Flats h	3/4in
Width Across Flats h1	3/4in

SBMC Bulkhead Male Connectors SBMC 6-8N

SBMC 3/8 in. Tube Outside Diameter D x 1/2 in. Male National Pipe Taper (MNPT) Bulkhead Male Connector

$25.09

Dimensions
Dimension A	16.76mm
Dimension I	56.38mm
Dimension I1	29.46mm
Dimension L	63.75mm
Dimension L1	36.83mm
Dimension d [Min]	7.11mm

Specifications
End Size	44198in
End Type	National Pipe Thread (NPT)
Inch/Metric	Inch
Pannel Hole Drill Size	14.68mm
Pannel Thickness [Max]	11.17mm
Tube Outside Diameter D	3/8in
Width Across Flats h	7/8in
Width Across Flats h1	3/4in

SBMC Bulkhead Male Connectors SBMC 8-6N

SBMC 1/2 in. Tube Outside Diameter DX 3/8 in. Male National Pipe Taper (MNPT) Bulkhead Male Connector

$28.74

Dimensions
Dimension A	22.86mm
Dimension I	53.08mm
Dimension I1	31.75mm
Dimension L	63.24mm
Dimension L1	41.91mm
Dimension d [Min]	9.65mm

Specifications
End Size	44263in
End Type	National Pipe Thread (NPT)
Inch/Metric	Inch
Pannel Hole Drill Size	19.44mm
Pannel Thickness [Max]	12.70mm
Tube Outside Diameter D	1/2in
Width Across Flats h	15/16in
Width Across Flats h1	15/16in

SBMC Bulkhead Male Connectors SBMC 8-8N

SBMC 1/2 in. Tube Outside Diameter D x 1/2 in. Male National Pipe Taper (MNPT) Bulkhead Male Connector

$28.74

Dimensions
Dimension A	22.86mm
Dimension I	58.67mm
Dimension I1	31.75mm
Dimension L	68.83mm
Dimension L1	41.91mm
Dimension d [Min]	10.41mm

Specifications
End Size	44198in
End Type	National Pipe Thread (NPT)
Inch/Metric	Inch
Pannel Hole Drill Size	19.44mm
Pannel Thickness [Max]	12.70mm
Tube Outside Diameter D	1/2in
Width Across Flats h	15/16in
Width Across Flats h1	15/16in

SBMC Bulkhead Male Connectors SBMC 12-12N

SBMC 3/4 in. Tube Outside Diameter D x 3/4 in. Male National Pipe Taper (MNPT) Bulkhead Male Connector

$52.31

Dimensions
Dimension A	24.38mm
Dimension I	66.04mm
Dimension I1	37.33mm
Dimension L	76.2mm
Dimension L1	47.49mm
Dimension d [Min]	15.74mm

Specifications
End Size	44259in
End Type	National Pipe Thread (NPT)
Inch/Metric	Inch
Pannel Hole Drill Size	25.79mm
Pannel Thickness [Max]	16.76mm
Tube Outside Diameter D	3/4in
Width Across Flats h	1-3/16in
Width Across Flats h1	1-3/16in

SBMC Bulkhead Male Connectors SBMC 16-16N

SBMC 1 in. Tube Outside Diameter D x 1 in. Male National Pipe Taper (MNPT) Bulkhead Male Connector

$97.44
