SFC 2-2N
$9.85

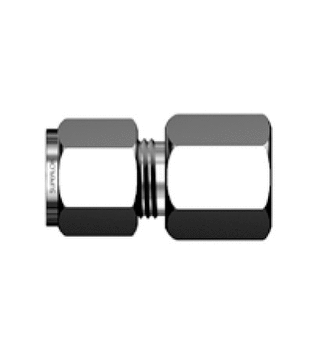

SFC 1/8 in. Tube Outside Diameter D x 1/8 in. Female National Pipe Taper (FNPT) Female Connector
Description
SFC 1/8 in. Tube Outside Diameter D x 1/8 in. Female National Pipe Taper (FNPT) Female Connector
| End Size | 44204in |
|---|---|
| End Type | National Pipe Thread (NPT) |
| Inch/Metric | Inch |
| Tube Outside Diameter D | 1/8in |
| Width Across Flats h | 9/16in |
| Dimension A | 12.70mm |
|---|---|
| Dimension B | 15.24mm |
| Dimension I | 22.09mm |
| Dimension L | 28.7mm |
| Dimension d [Min] | 2.28mm |
