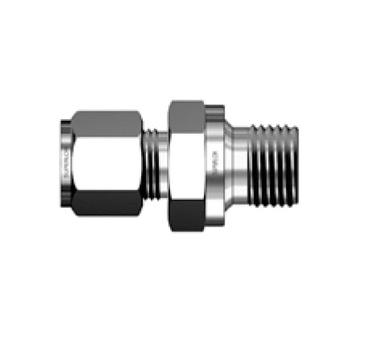

SGMC 16M-8G
$26.27
SGMC Male Connectors for bonded washer seal, Connects Metric Tubes to Female ISO Parallel Thread.
Description
SGMC Male Connectors for bonded washer seal, Connects Metric Tubes to Female ISO Parallel Thread.
| End Size | 44198in |
|---|---|
| Inch/Metric | Metric |
| Tube Outside Diameter D | 16mm |
| Width Across Flats h | 27.0mm |
| Dimension A | 24.4mm |
|---|---|
| Dimension B | 22.0mm |
| Dimension I | 38.9mm |
| Dimension I1 | 14.0mm |
| Dimension K | 26.0mm |
| Dimension L | 49.0mm |
| Dimension d [Min] | 11.9mm |
