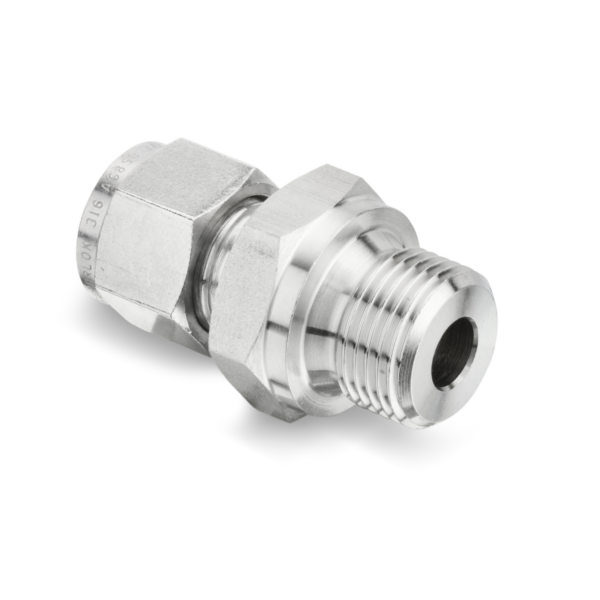

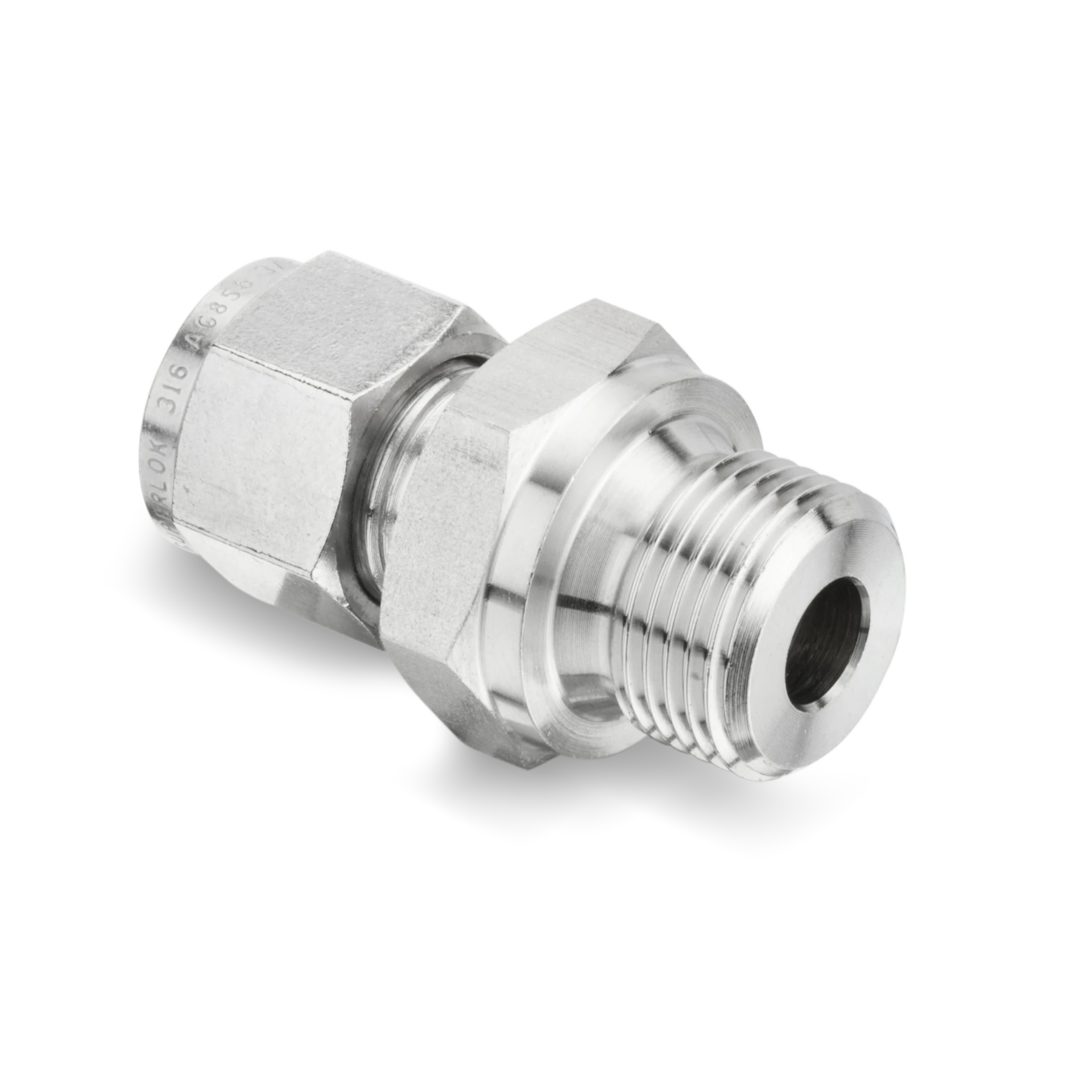

SGMC Male Connectors
$26.27 – $26.27
See individual part details below
Access our complete line of SGMC Male Connectors featuring precision-engineered designs. Our selection includes durable stainless steel connectors with secure threading options for your fluid system. Browse below to instantly request a quote or purchase the male connectors with industrial-grade construction.
Looking for Swagelok® alternatives? Enter a part number in our search to find compatible alternatives.
Description
| End Size | 44198in |
|---|---|
| Inch/Metric | Metric |
| Superlok Part Type | Male Connector |

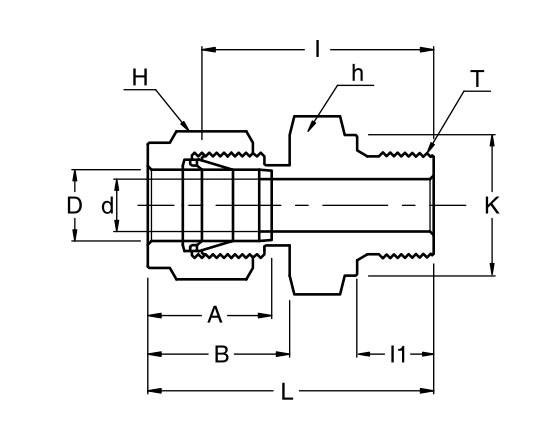

| Tube Outside Diameter D | 16mm |
| Width Across Flats H | 25mm |
| Dimension A | 24.4mm |
|---|---|
| Dimension B | 22.0mm |
| Dimension I | 38.9mm |
| Dimension I1 | 14.0mm |
| Dimension K | 26.0mm |
| Dimension L | 49.0mm |
| Dimension d [Min] | 11.9mm |
Available Sizes
SGMC Male Connectors SGMC 16M-8G
SGMC Male Connectors for bonded washer seal, Connects Metric Tubes to Female ISO Parallel Thread.
$26.27
$26.27
