SSWC-8
$23.29

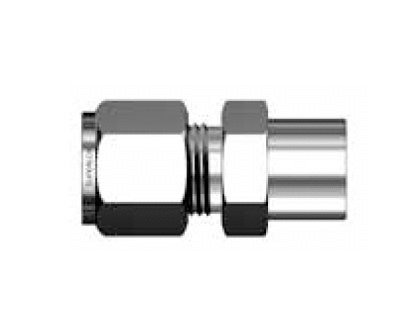

SSWC 1/2 in. Tube Outside Diameter D x 1/2 in. Tube Socket Weld Connector
Description
SSWC 1/2 in. Tube Outside Diameter D x 1/2 in. Tube Socket Weld Connector
| Inch/Metric | Inch |
|---|---|
| Tube Outside Diameter D | 1/2in |
| Width Across Flats h | 13/16in |
| Dimension A | 22.86mm |
|---|---|
| Dimension B | 21.84mm |
| Dimension I | 30.98mm |
| Dimension I1 | 12.70mm |
| Dimension L | 41.14mm |
| Dimension L1 | 11.93mm |
| Dimension P | 19.05mm |
| Dimension d [Min] | 10.41mm |
