SHME 4-4N
$16.82

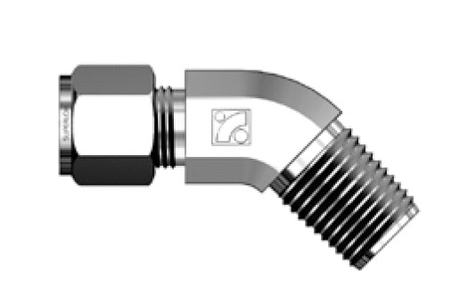

SHME 1/4 in. Tube Outside Diameter D x 1/4 in. Male National Pipe Taper (MNPT) Thread T 45 Degree Male Elbow
Description
SHME 1/4 in. Tube Outside Diameter D x 1/4 in. Male National Pipe Taper (MNPT) Thread T 45 Degree Male Elbow
| Angle | 45º |
|---|---|
| End Size | 44200in |
| End Type | Female National Pipe Thread (NPT) |
| Inch/Metric | Inch |
| Tube Outside Diameter D | 1/4in |
| Width Across Flats h | 1/2in |
| Dimension A | 15.24mm |
|---|---|
| Dimension B | 17.78mm |
| Dimension I | 17.27mm |
| Dimension L | 24.63mm |
| Dimension L1 | 21.08mm |
| Dimension d [Min] | 4.82mm |
