SPHME 6-6U
$27.85

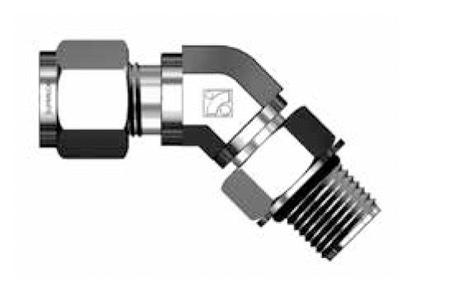

SPHME Positionable 45 Degree Male Elbows, Connects Fractional Tubes to SAE/MS Straight Thread
Description
SPHME Positionable 45 Degree Male Elbows, Connects Fractional Tubes to SAE/MS Straight Thread
| Angle | 45º |
|---|---|
| End Size | 43359 |
| End Type | Society of Automotive Engineering (SAE)/MS Straight Thread (U) |
| Inch/Metric | Inch |
| Outside Diameter Pipe Size (P) | 21.30mm |
| Tube Outside Diameter D | 3/8in |
| Width Across Flats H | 11/16in |
| Width Across Flats h1 | 5/8in |
| Width Across Flats h2 | 11/16in |
| Dimension A | 16.76mm |
|---|---|
| Dimension B | 19.30mm |
| Dimension C | 20.07mm |
| Dimension I | 20.57mm |
| Dimension L | 27.94mm |
| Dimension L1 | 28.19mm |
| Dimension d [Min] | 7.11mm |
