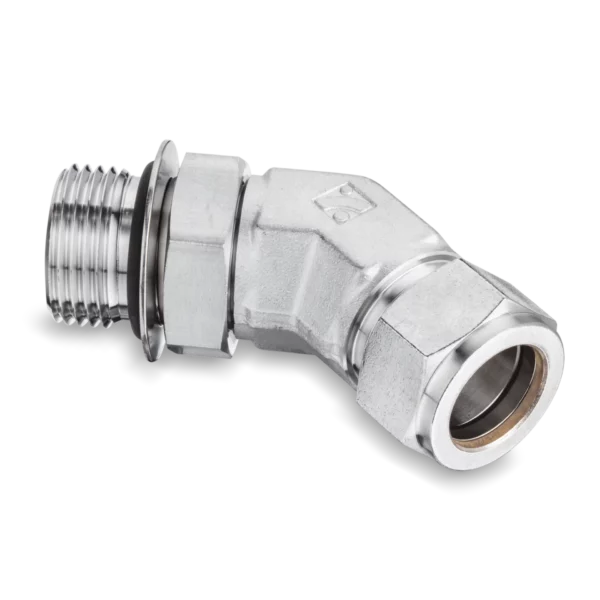

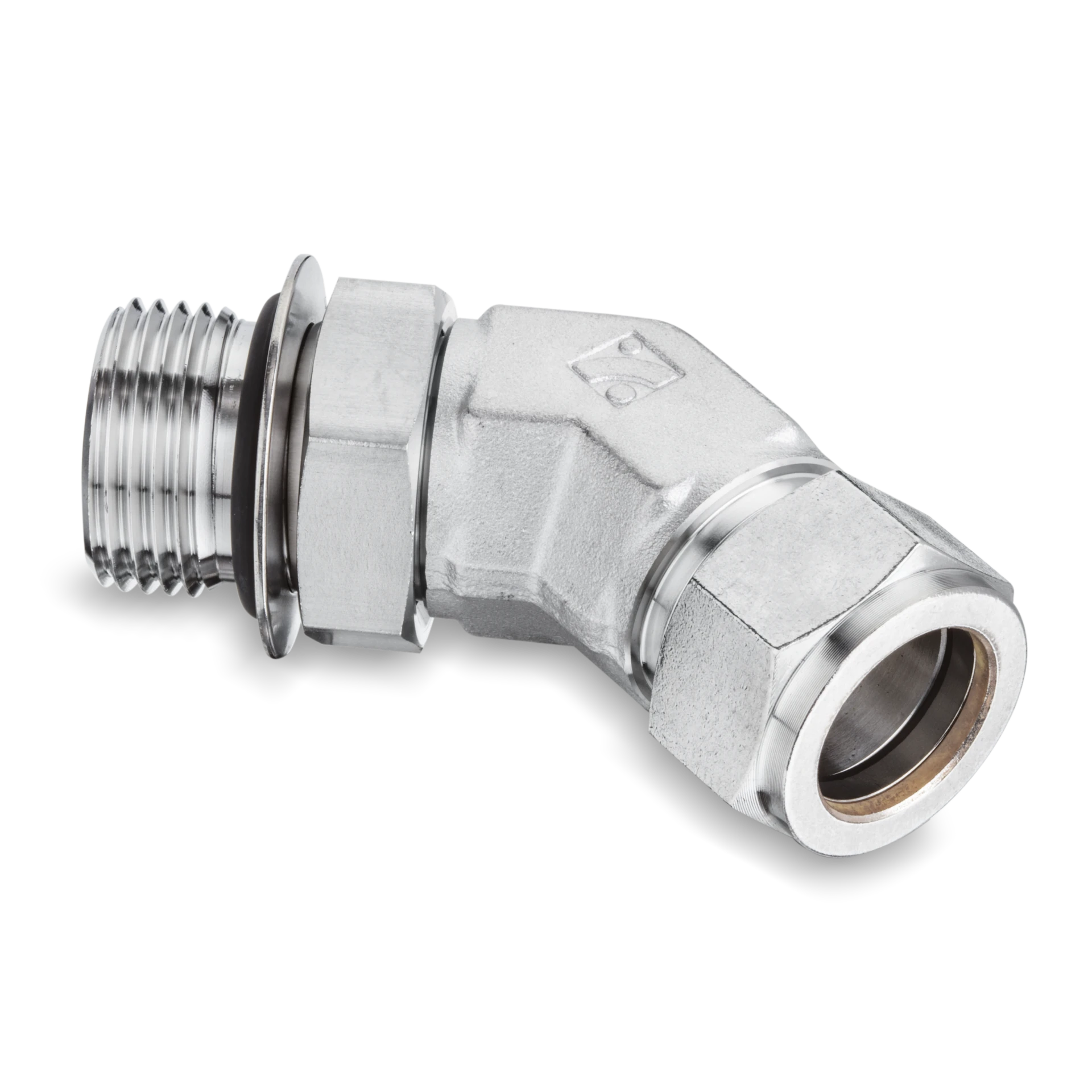

SPHME Positionable 45 Degree Male Elbows
$27.85 – $27.85
See individual part details below
Access our complete line of positionable 45-degree Male Elbow options for adjustable fluid connections. Our selection allows for custom angle adjustments for your fluid system. Browse below to instantly request quotes or purchase the western elbow positioner you need.
Looking for Swagelok® alternatives? Enter a part number in our search to find compatible alternatives.
Description
| Angle | 45º |
|---|---|
| End Size | 43359 |
| End Type | Society of Automotive Engineering (SAE)/MS Straight Thread (U) |
| Inch/Metric | Inch |
| Outside Diameter Pipe Size (P) | 21.30mm |
| Superlok Part Type | Positionable Male Elbows |

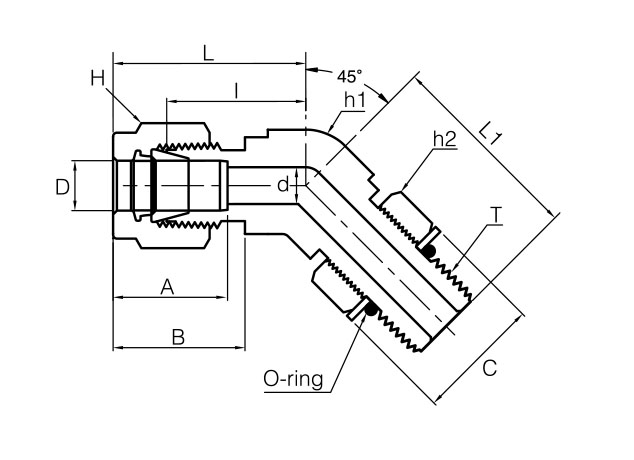

| Tube Outside Diameter D | 3/8in |
| Width Across Flats H | 11/16in |
| Width Across Flats h1 | 5/8in |
| Width Across Flats h2 | 11/16in |
| Dimension A | 16.76mm |
|---|---|
| Dimension B | 19.30mm |
| Dimension C | 20.07mm |
| Dimension I | 20.57mm |
| Dimension L | 27.94mm |
| Dimension L1 | 28.19mm |
| Dimension d [Min] | 7.11mm |
Available Sizes
SPHME Positionable 45 Degree Male Elbows SPHME 6-6U
SPHME Positionable 45 Degree Male Elbows, Connects Fractional Tubes to SAE/MS Straight Thread
$27.85
$27.85
