SPME 4-6U
$25.29

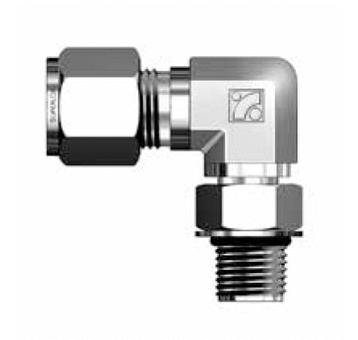

SPME 1/4 in. Tube Outside Diameter D x 9/16-18 Society of Automotive Engineering (SAE) Thread T Positionable 90 Degree Male Elbow
Description
SPME 1/4 in. Tube Outside Diameter D x 9/16-18 Society of Automotive Engineering (SAE) Thread T Positionable 90 Degree Male Elbow
| Angle | 90º |
|---|---|
| End Size | 43359, in |
| End Type | Society of Automotive Engineering (SAE)/MS Straight Thread |
| Inch/Metric | Inch |
| Tube Outside Diameter D | 1/4in |
| Width Across Flats H | 9/16in |
| Width Across Flats h1 | 11/16in |
| Width Across Flats h2 | 9/16in |
| Dimension A | 15.24mm |
|---|---|
| Dimension B | 17.78mm |
| Dimension C | 20.07mm |
| Dimension I | 23.11mm |
| Dimension L | 30.48mm |
| Dimension L1 | 32.26mm |
| Dimension d [Min] | 4.83mm |
