Description

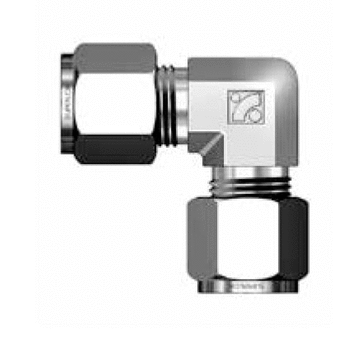

SUE 8 mm Tube Outside Diameter D 90 Degree Union Elbow
| Angle | 90º |
|---|---|
| Inch/Metric | Metric |
| Tube Outside Diameter D | in, 8mm |
| Width Across Flats h | in, 15.9mm |
| Dimension A | 16.2mm |
|---|---|
| Dimension B | 18.6mm |
| Dimension I | 22.4mm |
| Dimension L | 29.9mm |
| Dimension d [Min] | 6.4mm |
