Description

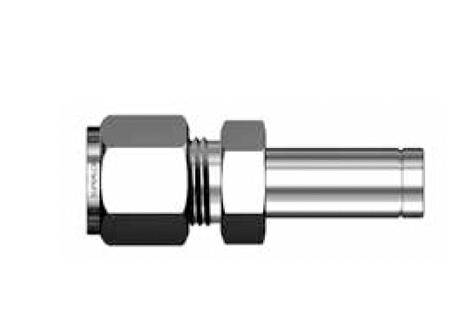

SR 1/8 in. Tube Outside Diameter DX 1/8 in. Tube Stub Reducer
| Inch/Metric | Inch |
|---|---|
| Tube Outside Diameter D | 1/8in, mm |
| Tube Outside Diameter D1 | 1/8in |
| Width Across Flats h | 7/16in, mm |
| Dimension A | 12.70mm |
|---|---|
| Dimension B | 15.24mm |
| Dimension I | 26.92mm |
| Dimension L | 33.52mm |
| Dimension d1 [Min] | 2.1mm |
| Dimension d [Min] | 2.28mm |
