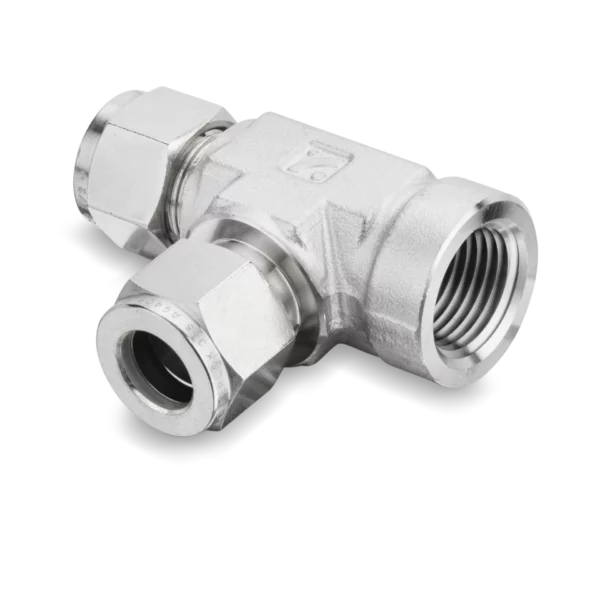

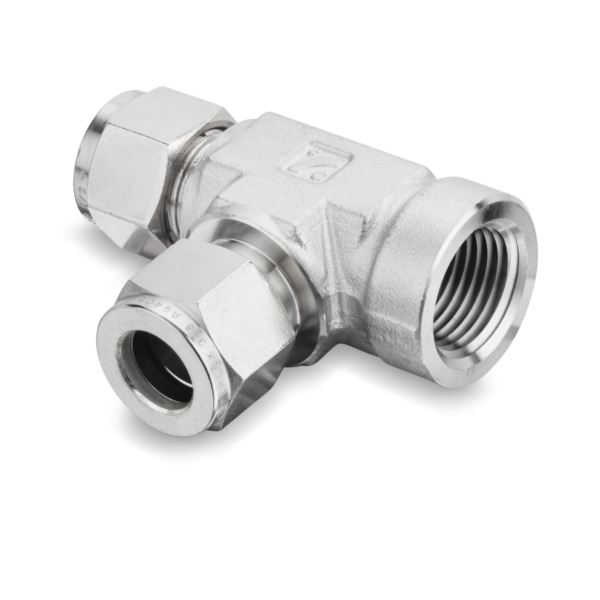

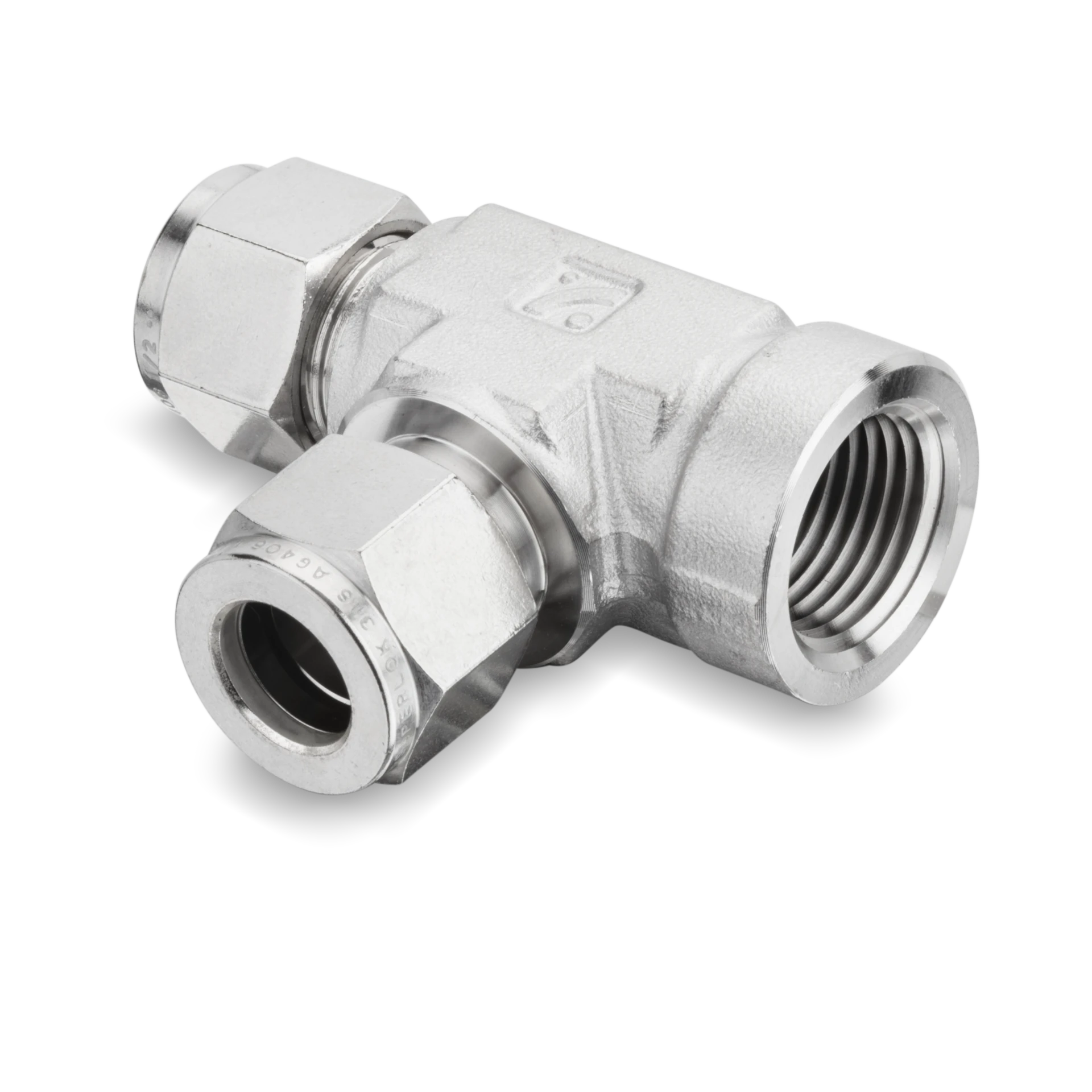

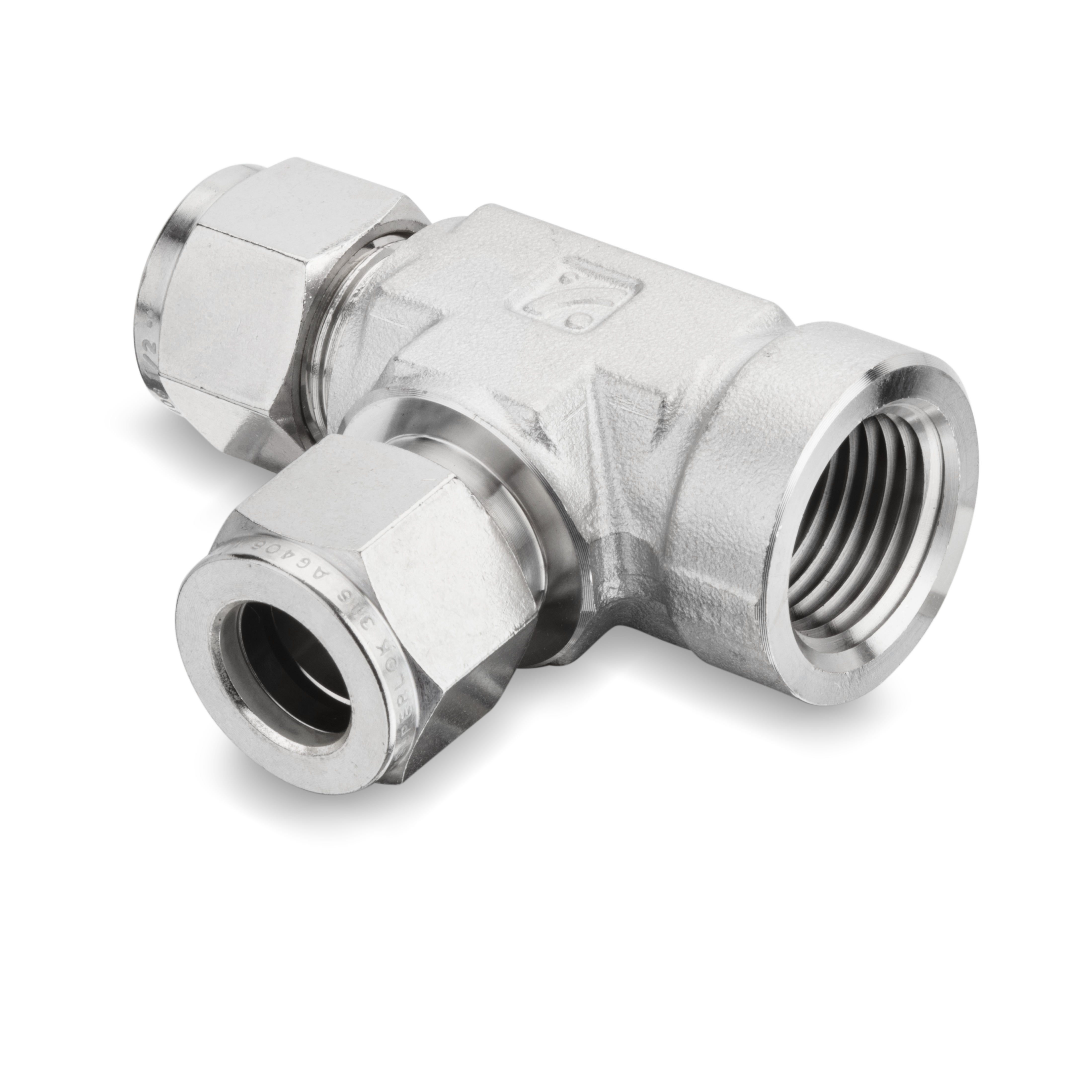

SFRT Female Run Tees

$27.95 – $164.80

Access our complete line of female run tee options for inline branch connections. Our selection provides reliable flow distribution for your fluid system. Browse below to instantly request quotes or purchase the female run tee you need.

Looking for Swagelok® alternatives? Enter a part number in our search to find compatible alternatives.

Request Quote (805) 658-2043

Description

Specifications
End Type	National Pipe Thread (NPT)
Industry Standards/Certifications	American National Standards Institute (ANSI) B1.20.1
Superlok Part Type	Female Tee

Available Sizes

SFRT Female Run Tees SFRT 4-2N

SFRT 1/4 in. Tube Outside Diameter D x 1/8 in. Female National Pipe Taper (FNPT) Thread Female Run Tee

$27.95

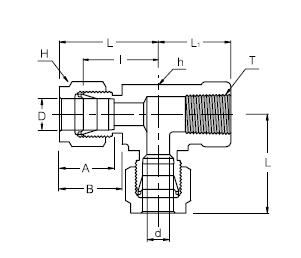

Dimensions
Dimension A	15.24mm
Dimension B	17.78mm
Dimension I	19.55mm
Dimension L	26.92mm
Dimension L1	19.05mm
Dimension d [Min]	4.82mm

Specifications
End Size	44204in
End Type	National Pipe Thread (NPT)
Inch/Metric	Inch
Industry Standards/Certifications	American National Standards Institute (ANSI) B1.20.1
Tube Outside Diameter D	1/4in, mm
Width Across Flats h	1/2in, mm

SFRT Female Run Tees SFRT 4-4N

SFRT 1/4 in. Tube Outside Diameter D x 1/4 in. Female National Pipe Taper (FNPT) Thread Female Run Tee

$31.63

Dimensions
Dimension A	15.24mm
Dimension B	17.78mm
Dimension I	22.35mm
Dimension L	29.71mm
Dimension L1	22.35mm
Dimension d [Min]	4.82mm

Specifications
End Size	44200in
End Type	National Pipe Thread (NPT)
Inch/Metric	Inch
Industry Standards/Certifications	American National Standards Institute (ANSI) B1.20.1
Tube Outside Diameter D	1/4in, mm
Width Across Flats h	11/16in, mm

SFRT Female Run Tees SFRT 6-4N

SFRT 3/8 in. Tube Outside Diameter D x 1/4 in. Female National Pipe Taper (FNPT) Thread Female Run Tee

$32.64

Dimensions
Dimension A	16.76mm
Dimension B	19.30mm
Dimension I	23.87mm
Dimension L	31.24mm
Dimension L1	22.35mm
Dimension d [Min]	7.11mm

Specifications
End Size	44200in
End Type	National Pipe Thread (NPT)
Inch/Metric	Inch
Industry Standards/Certifications	American National Standards Institute (ANSI) B1.20.1
Tube Outside Diameter D	3/8in, mm
Width Across Flats h	11/16in, mm

SFRT Female Run Tees SFRT 6M-4N

SFRT 6 mm Tube Outside Diameter D x 1/4 in. Female National Pipe Taper (FNPT) Thread Female Run Tee

$32.30

Dimensions
Dimension A	15.3mm
Dimension B	17.7mm
Dimension I	27.2mm
Dimension L	34.5mm
Dimension L1	28.4mm
Dimension d [Min]	4.8mm

Specifications
End Size	44200in
End Type	National Pipe Thread (NPT)
Inch/Metric	Metric
Industry Standards/Certifications	American National Standards Institute (ANSI) B1.20.1
Tube Outside Diameter D	in, 6mm
Width Across Flats h	in, 17.46mm

SFRT Female Run Tees SFRT 8-6N

SFRT 1/2 in. Tube Outside Diameter D x 3/8 in. Female National Pipe Taper (FNPT) Thread Female Run Tee

$46.51

Dimensions
Dimension A	22.86mm
Dimension B	21.84mm
Dimension I	25.90mm
Dimension L	36.06mm
Dimension L1	22.35mm
Dimension d [Min]	10.41mm

Specifications
End Size	44263in
End Type	National Pipe Thread (NPT)
Inch/Metric	Inch
Industry Standards/Certifications	American National Standards Institute (ANSI) B1.20.1
Tube Outside Diameter D	1/2in, mm
Width Across Flats h	13/16in, mm

SFRT Female Run Tees SFRT 8-8N

SFRT 1/2 in. Tube Outside Diameter D x 1/2 in. Female National Pipe Taper (FNPT) Thread Female Run Tee

$53.25

Dimensions
Dimension A	22.86mm
Dimension B	21.84mm
Dimension I	28.70mm
Dimension L	39.87mm
Dimension L1	28.44mm
Dimension d [Min]	10.41mm

Specifications
End Size	44198in
End Type	National Pipe Thread (NPT)
Inch/Metric	Inch
Industry Standards/Certifications	American National Standards Institute (ANSI) B1.20.1
Tube Outside Diameter D	1/2in, mm
Width Across Flats h	1in, mm

SFRT Female Run Tees SFRT 12-12N

SFRT 3/4 in. Tube Outside Diameter D x 3/4 in. Female National Pipe Taper (FNPT) Thread Female Run Tee

$90.79

Dimensions
Dimension A	24.38mm
Dimension B	21.84mm
Dimension I	34.54mm
Dimension L	44.70mm
Dimension L1	31.75mm
Dimension d [Min]	15.74mm

Specifications
End Size	44259in
End Type	National Pipe Thread (NPT)
Inch/Metric	Inch
Industry Standards/Certifications	American National Standards Institute (ANSI) B1.20.1
Tube Outside Diameter D	3/4in, mm
Width Across Flats h	1-3/8in, mm

SFRT Female Run Tees SFRT 12M-8N

SFRT 12 mm Tube Outside Diameter D x 1/2 in. Female National Pipe Taper (FNPT) Thread Female Run Tee

$53.25

Dimensions
Dimension A	22.8mm
Dimension B	22.0mm
Dimension I	29.7mm
Dimension L	40.0mm
Dimension L1	28.4mm
Dimension d [Min]	9.5mm

Specifications
End Size	44198in
End Type	National Pipe Thread (NPT)
Inch/Metric	Metric
Industry Standards/Certifications	American National Standards Institute (ANSI) B1.20.1
Tube Outside Diameter D	in, 12mm
Width Across Flats h	in, 25.40mm

SFRT Female Run Tees SFRT 16-12N

SFRT 1 in. Tube Outside Diameter D x 3/4 in. Female National Pipe Taper (FNPT) Thread Female Run Tee

$164.80

Dimensions
Dimension A	31.24mm
Dimension B	26.41mm
Dimension I	36.83mm
Dimension L	49.02mm
Dimension L1	31.75mm
Dimension d [Min]	22.35mm

Specifications
End Size	44259in
End Type	National Pipe Thread (NPT)
Inch/Metric	Inch
Industry Standards/Certifications	American National Standards Institute (ANSI) B1.20.1
Tube Outside Diameter D	1in, mm
Width Across Flats h	1-3/8in, mm

SFRT Female Run Tees SFRT 16-16N

SFRT 1 in. Tube Outside Diameter D x 1 in. Female National Pipe Taper (FNPT) Thread Female Run Tee

$162.41
