Description

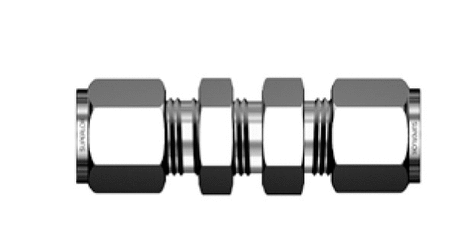

SBHU 1/2 in. Tube Outside Diameter D Bulkhead Union
| Inch/Metric | Inch |
|---|---|
| Panel Thickness [Max] | 12.70mm |
| Tube Outside Diameter D | 1/2in |
| Width Across Flats h | 15/16in |
| Dimension A | 22.86mm |
|---|---|
| Dimension B | 21.84mm |
| Dimension I | 50.80mm |
| Dimension I1 | 31.75mm |
| Dimension L | 71.12mm |
| Dimension L1 | 41.91mm |
| Dimension d [Min] | 10.41mm |
