SBT2-S-4-CNG
$205.49

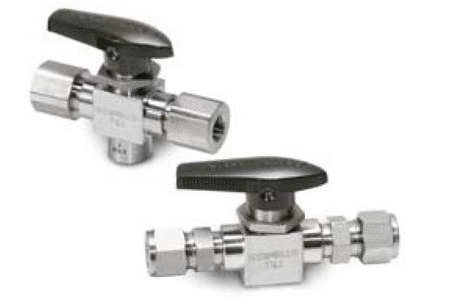

SBT 1/4 in. Tube Outside Diameter D -40 to 250 ºF, 6000 psig Pressure Rating, Buna-N O-Ring, Stainless Steel Ball Valve
Description
SBT 1/4 in. Tube Outside Diameter D -40 to 250 ºF, 6000 psig Pressure Rating, Buna-N O-Ring, Stainless Steel Ball Valve
PEEK trunnion bearings for longer cycle life Two-way and three way designs Blow-out resistant two-piece ball/stem Low operating torque Panel mountable to 9.7mm thickness Handle indicates direction of flow Positive handle stops 100% factory tested Compact, maximum flow design
| Cv Coefficient | 1.6 |
|---|---|
| End Size | 44200in |
| End Type | Array |
| Inch/Metric | Inch |
| Orifice | 4.8mm |
| Pressure Rating | bar, psig |
| Temperature Rating | ºC, ºF |
| Dimension A | 105mm |
|---|---|
| Dimension B | 52.6mm |
