SBV120H43-F-8N
$246.48

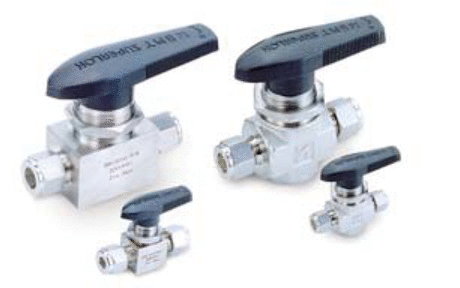

SBV 1/2 in. Female National Pipe Taper (FNPT) Thread, 3-Way, 3000 psi Pressure [Max] Ball Valve
Description
SBV 1/2 in. Female National Pipe Taper (FNPT) Thread, 3-Way, 3000 psi Pressure [Max] Ball Valve
Simple design with one piece body Tight and smooth, low torque and easy operation One-piece ball stem Panel mountable Variety of End Connections Straight, Angle and 3-Way flow patterns Each and every valve is tested at the factory
| Cv Coefficient | 3.5 |
|---|---|
| End Type | Female National Pipe Thread (FNPT) |
| End Type 2 | Female National Pipe Thread (FNPT) |
| Inch/Metric | Inch |
| Inlet | 1/2in |
| Orifice | 10.3mm |
| Outlet | 1/2in |
| Pressure Rating | 206bar, 3000psig |
| Pressure [Max] | 1500bar, 103psi |
| Temperature Rating | 10 to 65ºC, 50 to 150ºF |
| Dimension A | 39.6mm |
|---|---|
| Dimension A1 | 39.6mm |
| Dimension B | 79.2mm |
| Dimension D | 17.5mm |
| Dimension E | 17.5mm |
| Dimension F | 9.4mm |
| Dimension G | 38.1mm |
| Dimension H | 71.8mm |
| Dimension I | 75.0mm |
| Dimension W | 38.1mm |
