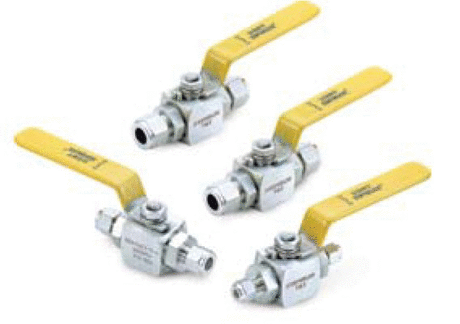

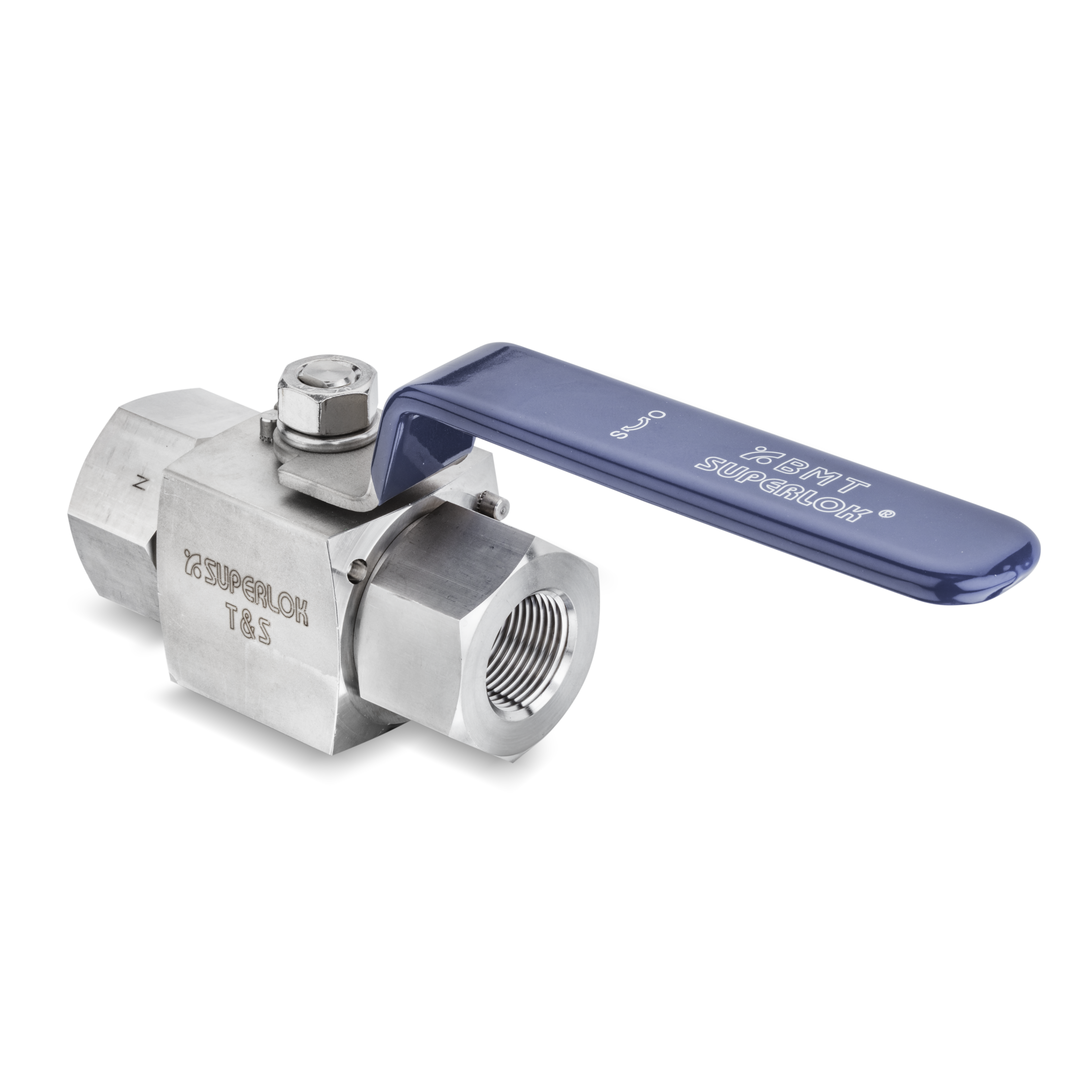

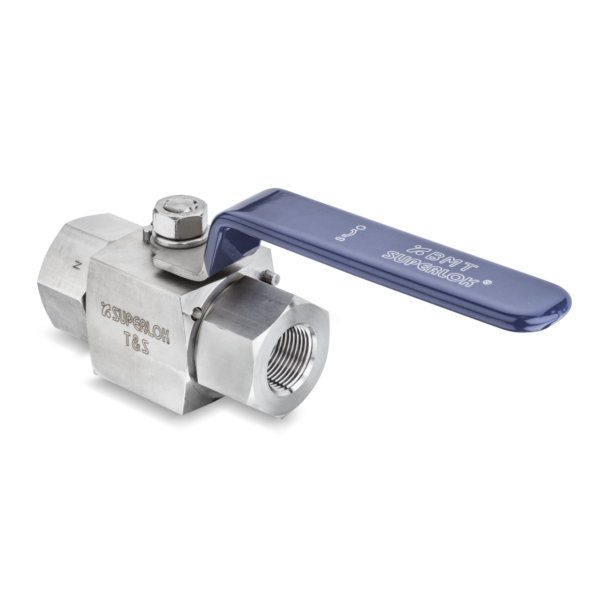

SBVH360 Series Ball Valves
$90.85 – $355.35
See individual part details below
Access our complete line of ball valves engineered for maximum flow capacity. Our selection features anti-blow-out stems and factory-tested safety designs for your fluid system. Browse below to instantly request a quote or purchase the ball valves with fire-safe configurations.
Looking for Swagelok® alternatives? Enter a part number in our search to find compatible alternatives.
Description
Compact design High flow rate with maximum orifice Variety of End Connections Anti blow-out stem design Each and every valve is tested at the factory Fire safety design available
| Inch/Metric | Inch |
|---|---|
| Pressure Rating | 413bar, 6000psig |
| Superlok Part Type | Ball Valve |
| Temperature Rating | -54 to 260ºC, -65 to 500ºF |
Available Sizes
SBVH360 Series Ball Valves SBVH3601-F-4N
SBVH 1/4 in. Female National Pipe Taper (FNPT) Thread, 6,000 psi Pressure Rating Ball Valve
$90.85
$90.85
SBVH360 Series Ball Valves SBVH3601-F-4N-PE
SBVH 1/4 in. Female National Pipe Taper (FNPT) Thread, Peek Seats, -65 to 446 ºF, 10,000 psi Pressure Rating Ball Valve
$242.05
$242.05
SBVH360 Series Ball Valves SBVH3601-F-4N-PL
SBVH 1/4 in. Female National Pipe Taper (FNPT) Thread, Locking Handle, 6,000 psi Pressure Rating Ball Valve
$119.40
$119.40
SBVH360 Series Ball Valves SBVH3601-F-8N-PE
SBVH 1/2 in. Female National Pipe Taper (FNPT) Thread, Peek Seats, -65 to 446 ºF, 10,000 psi Pressure Rating Ball Valve
$272.95
$272.95
SBVH360 Series Ball Valves SBVH3601-M-4N
SBVH 1/4 in. Male National Pipe Taper (MNPT) Thread, 6,000 psi Pressure Rating Ball Valve
$181.69
$181.69
SBVH360 Series Ball Valves SBVH3601-M-6N
SBVH 3/8 in. Male National Pipe Taper (MNPT) Thread, 6,000 psi Pressure Rating Ball Valve
$186.02
$186.02
SBVH360 Series Ball Valves SBVH3601-M-8N
SBVH 1/2 in. Male National Pipe Taper (MNPT) Thread, 6,000 psi Pressure Rating Ball Valve
$204.97
$204.97
SBVH360 Series Ball Valves SBVH3601-S-4
SBVH 1/4 in. Tube Outside Diameter D 6,000 psi Pressure Rating Ball Valve
$216.30
$216.30
SBVH360 Series Ball Valves SBVH3601-S-6-PL
SBVH 3/8 in. Tube Outside Diameter D, Locking Handle, 6,000 psi Pressure Rating Ball Valve
$226.60
$226.60
SBVH360 Series Ball Valves SBVH3601-S-8
SBVH 1/2 in. Tube Outside Diameter D 6,000 psi Pressure Rating Ball Valve
$236.90
$236.90
SBVH360 Series Ball Valves SBVH3601-S-8-PE
SBVH 1/2 in. Tube Outside Diameter D Peek Seats, -65 to 446 ºF, 10,000 psi Pressure Rating Ball Valve
$257.29
$257.29
SBVH360 Series Ball Valves SBVH3602-F-8N
SBVH 1/2 in. Male National Pipe Taper (MNPT) Thread, 5,000 psi Pressure Rating Ball Valve
$250.91
$250.91
SBVH360 Series Ball Valves SBVH3602-F-12N-PE
SBVH 3/4 in. Female National Pipe Taper (FNPT) Thread, Peek Seats, -10 to 375 ºF, 6,000 psi Pressure Rating Ball Valve
$267.98
$267.98
SBVH360 Series Ball Valves SBVH3603-F-12N
SBVH 3/4 in. Female National Pipe Taper (FNPT) Thread, 5,000 psi Pressure Rating Ball Valve
$259.56
$259.56
SBVH360 Series Ball Valves SBVH3603-F-16N-PE
SBVH 1 in. Female National Pipe Taper (FNPT) Thread, Peek Seats, -10 to 375 ºF, 6,000 psi Pressure Rating Ball Valve
$333.72
$333.72
SBVH360 Series Ball Valves SBVH3603-S-12
SBVH 3/4 in. Tube Outside Diameter D 5,000 psi Pressure Rating Ball Valve
$289.84
$289.84
SBVH360 Series Ball Valves SBVH3603-S-12-PE
SBVH 3/4 in. Tube Outside Diameter D Peek Seats, -10 to 375 ºF, 6,000 psi Pressure Rating Ball Valve
$308.23
$308.23
SBVH360 Series Ball Valves SBVH3603-S-16
SBVH 1 in. Tube Outside Diameter D, 5,000 psi Pressure Rating Ball Valve
$309.31
$309.31
SBVH360 Series Ball Valves SBVH3603-S-16-PE
SBVH 1 in. Tube Outside Diameter D Peek Seats, -10 to 375 ºF, 6,000 psi Pressure Rating Ball Valve
$355.35
$355.35
