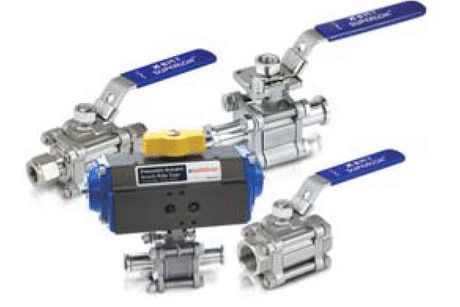

SWB Swing Out Ball Valves

$177.23 – $439.09

Access our complete line of SWB swing out ball valves designed for easy maintenance access. Our selection enables quick inspection and cleaning without removing the valve body for your fluid system. Browse below to instantly request a quote or purchase the swing out ball valves you need.

Looking for Swagelok® alternatives? Enter a part number in our search to find compatible alternatives.

Request Quote (805) 658-2043

Description

Specifications
Inch/Metric	Inch
Pressure Rating	206bar, 3000psig
Superlok Part Type	Ball Valve
Temperature Rating	-28 to 232ºC, -20 to 450ºF

Available Sizes

SWB Swing Out Ball Valves SWB2303-F-16N

SWB 1 in. Female National Pipe Taper (FNPT) Thread, 2200 psi Pressure Rating Swing-Out Ball Valve

Dimensions
Dimension A	79.0mm
Dimension B	62.0mm
Dimension C	92.0mm
Dimension D	46.0mm
Dimension E	31.0mm
Dimension F	61.9mm
Dimension H	149.4mm

Specifications
Cv Coefficient	40.0
End Size	1in
End Type	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Orifice	0.875in, 22.2mm
Pressure Rating	206bar, 3000psig
Temperature Rating	-28 to 232ºC, -20 to 450ºF

SWB Swing Out Ball Valves SWB3201-S-4

SWB 1/4 in. Tube Outside Diameter D, 2200 psi Pressure Rating Swing-Out Ball Valve

$177.23

Dimensions
Dimension A	47.7mm
Dimension B	33.0mm
Dimension C	80.8mm
Dimension D	40.40mm
Dimension E	16.75mm
Dimension F	38.8mm
Dimension H	57.2mm

Specifications
Cv Coefficient	1.2
End Size	44200in
End Type	Array
Inch/Metric	Inch
Orifice	0.188in, 4.8mm
Pressure Rating	206bar, 3000psig
Temperature Rating	-28 to 232ºC, -20 to 450ºF

SWB Swing Out Ball Valves SWB3201-S-6

SWB 3/8 in. Tube Outside Diameter D, 2200 psi Pressure Rating Swing-Out Ball Valve

$184.09

Dimensions
Dimension A	47.7mm
Dimension B	33.0mm
Dimension C	80.8mm
Dimension D	40.40mm
Dimension E	16.75mm
Dimension F	38.8mm
Dimension H	57.2mm

Specifications
Cv Coefficient	3.8
End Size	44263in
End Type	Array
Inch/Metric	Inch
Orifice	0.281in, 7.1mm
Pressure Rating	206bar, 3000psig
Temperature Rating	-28 to 232ºC, -20 to 450ºF

SWB Swing Out Ball Valves SWB3202-F-8N

SWB 1/2 in. Female National Pipe Taper (FNPT) Thread, 2200 psi Pressure Rating Swing-Out Ball Valve

$194.67

Dimensions
Dimension A	64.8mm
Dimension B	44.5mm
Dimension C	68.9mm
Dimension D	34.45mm
Dimension E	22.25mm
Dimension F	4.22mm
Dimension H	111.0mm

Specifications
Cv Coefficient	12.0
End Size	44198in
End Type	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Orifice	0.516in, 133.1mm
Pressure Rating	206bar, 3000psig
Temperature Rating	-28 to 232ºC, -20 to 450ºF

SWB Swing Out Ball Valves SWB3202-S-8

SWB 1/2 in. Tube Outside Diameter D, 2200 psi Pressure Rating Swing-Out Ball Valve

$214.22

Dimensions
Dimension A	64.8mm
Dimension B	44.5mm
Dimension C	103.8mm
Dimension D	51.90mm
Dimension E	22.25mm
Dimension F	44.2mm
Dimension H	111.0mm

Specifications
Cv Coefficient	7.5
End Size	44198in
End Type	Array
Inch/Metric	Inch
Orifice	0.411in, 10.4mm
Pressure Rating	206bar, 3000psig
Temperature Rating	-28 to 232ºC, -20 to 450ºF

SWB Swing Out Ball Valves SWB3202-S-8-OH

SWB 1/2 in. Tube Outside Diameter D, Oval Handle, 2200 psi Pressure Rating Swing-Out Ball Valve

$217.38

Dimensions
Dimension A	64.8mm
Dimension B	44.5mm
Dimension C	103.8mm
Dimension D	51.90mm
Dimension E	22.25mm
Dimension F	44.2mm
Dimension H	111.0mm

Specifications
Cv Coefficient	7.5
End Size	44198in
End Type	Array
Inch/Metric	Inch
Orifice	0.411in, 10.4mm
Pressure Rating	206bar, 3000psig
Temperature Rating	-28 to 232ºC, -20 to 450ºF

SWB Swing Out Ball Valves SWB3202-S-8-UP

SWB 1/2 in. Tube Outside Diameter D, UHMWPE Seats, 2200 psi Pressure Rating Swing-Out Ball Valve

$239.01

Dimensions
Dimension A	64.8mm
Dimension B	44.5mm
Dimension C	103.8mm
Dimension D	51.90mm
Dimension E	22.25mm
Dimension F	44.2mm
Dimension H	111.0mm

Specifications
Cv Coefficient	7.5
End Size	44198in
End Type	Array
Inch/Metric	Inch
Orifice	0.411in, 10.4mm
Pressure Rating	206bar, 3000psig
Temperature Rating	-28 to 232ºC, -20 to 450ºF

SWB Swing Out Ball Valves SWB3202-S-12

SWB 3/4 in. Tube Outside Diameter D, 2200 psi Pressure Rating Swing-Out Ball Valve

$227.05

Dimensions
Dimension A	64.8mm
Dimension B	44.5mm
Dimension C	103.8mm
Dimension D	51.90mm
Dimension E	22.25mm
Dimension F	44.2mm
Dimension H	111.0mm

Specifications
Cv Coefficient	13.6
End Size	44259in
End Type	Array
Inch/Metric	Inch
Orifice	0.516in, 13.1mm
Pressure Rating	206bar, 3000psig
Temperature Rating	-28 to 232ºC, -20 to 450ºF

SWB Swing Out Ball Valves SWB3202-S-12-OH

SWB 3/4 in. Tube Outside Diameter D, Oval Handle, 2200 psi Pressure Rating Swing-Out Ball Valve

$244.10

Dimensions
Dimension A	64.8mm
Dimension B	44.5mm
Dimension C	103.8mm
Dimension D	51.90mm
Dimension E	22.25mm
Dimension F	44.2mm
Dimension H	111.0mm

Specifications
Cv Coefficient	13.6
End Size	44259in
End Type	Array
Inch/Metric	Inch
Orifice	0.516in, 13.1mm
Pressure Rating	206bar, 3000psig
Temperature Rating	-28 to 232ºC, -20 to 450ºF

SWB Swing Out Ball Valves SWB3202-S-12-UP

SWB 3/4 in. Tube Outside Diameter D, UHMWPE Seats, 2200 psi Pressure Rating Swing-Out Ball Valve

$244.64

Dimensions
Dimension A	64.8mm
Dimension B	44.5mm
Dimension C	103.8mm
Dimension D	51.90mm
Dimension E	22.25mm
Dimension F	44.2mm
Dimension H	111.0mm

Specifications
Cv Coefficient	13.6
End Size	44259in
End Type	Array
Inch/Metric	Inch
Orifice	0.516in, 13.1mm
Pressure Rating	206bar, 3000psig
Temperature Rating	-28 to 232ºC, -20 to 450ºF

SWB Swing Out Ball Valves SWB3203-S-16

SWB 1 in. Tube Outside Diameter D, 2200 psi Pressure Rating Swing-Out Ball Valve

$408.81

Dimensions
Dimension A	79.0mm
Dimension B	62.0mm
Dimension C	136.7mm
Dimension D	68.35mm
Dimension E	31.0mm
Dimension F	61.9mm
Dimension H	149.4mm

Specifications
Cv Coefficient	40.0
End Size	1in
End Type	Array
Inch/Metric	Inch
Orifice	0.875in, 22.2mm
Pressure Rating	206bar, 3000psig
Temperature Rating	-28 to 232ºC, -20 to 450ºF

SWB Swing Out Ball Valves SWB3203-S-16-OH

SWB 1 in. Tube Outside Diameter D, Oval Handle, 2200 psi Pressure Rating Swing-Out Ball Valve

$439.09
