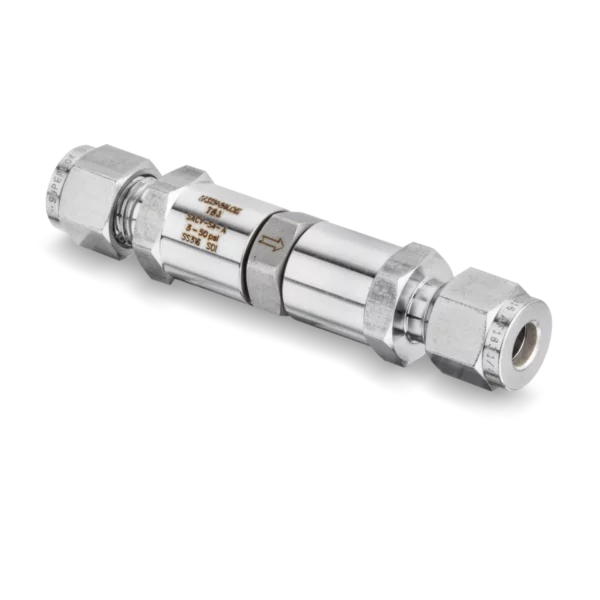

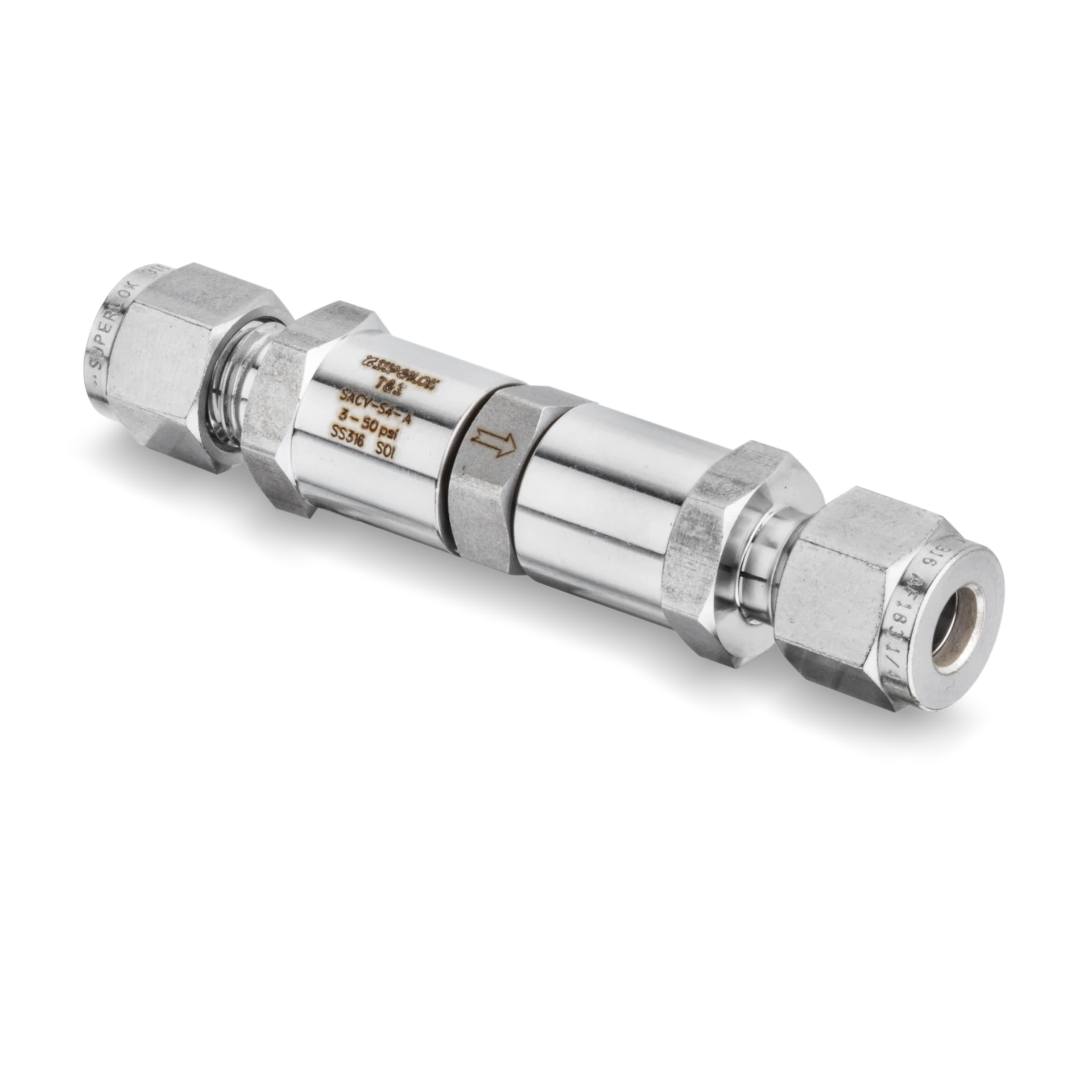

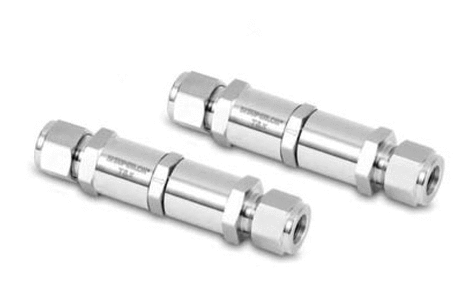

SACV Adjustable Check Valves
–
See individual part details below
Access our SACV adjustable check valves designed for high-pressure applications up to 6,000 psig. This features 316 stainless steel construction and FKM seals for temperatures to 375°F for your fluid system. Browse below to request quotes for this factory-tested adjustable check valve.
Looking for Swagelok® alternatives? Enter a part number in our search to find compatible alternatives.
Pressure rating up to 6,000 psig (413 bar) at 100 ºF (37 ºC) Temperature rating up to 375 ºF (190 ºC) with Fluorocarbon (FKM) seal standard Cracking pressure fixed from 1/3 to 25 psig (0.02 to 1.7 bar) Variety of end connections 316 stainless steel body material as standard Each and every valve is tested at the factory
| Back Pressure at 70 (20 ºC) Temperature | 206bar, 3000psig |
|---|---|
| Cracking Pressure | 0.2 to 3.4bar, 3 to 50psi |
| Cv Coefficient | 0.37 |
| Inch/Metric | Inch |
| Inlet | 1/4mm |
| Operating Pressure [Min] | 206bar, 3000psig |
| Outlet | 1/4mm |
| Superlok Part Type | Check Valve |
| Temperature Rating for Fluorocarbon (FKM) | -23 to 190ºC, -10 to 375ºF |
| Temperature Rating for Nitrile Butadiene Rubber | -23 to 121ºC, -10 to 250ºF |

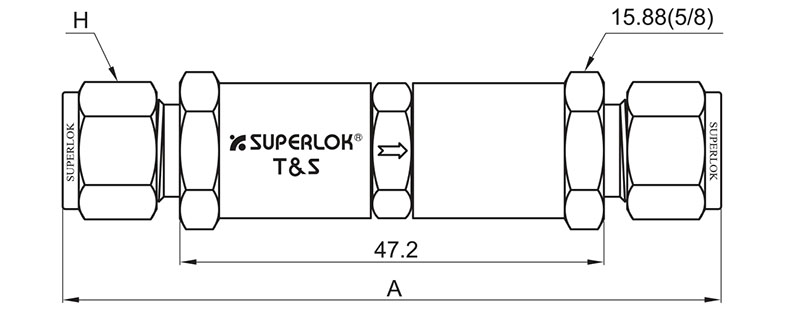

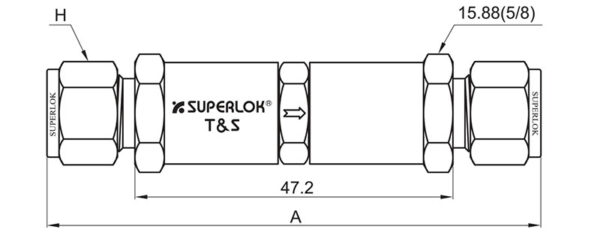

| Dimension A | 82.0mm |
|---|---|
| Dimension H | 9/16in, 14.3mm |
