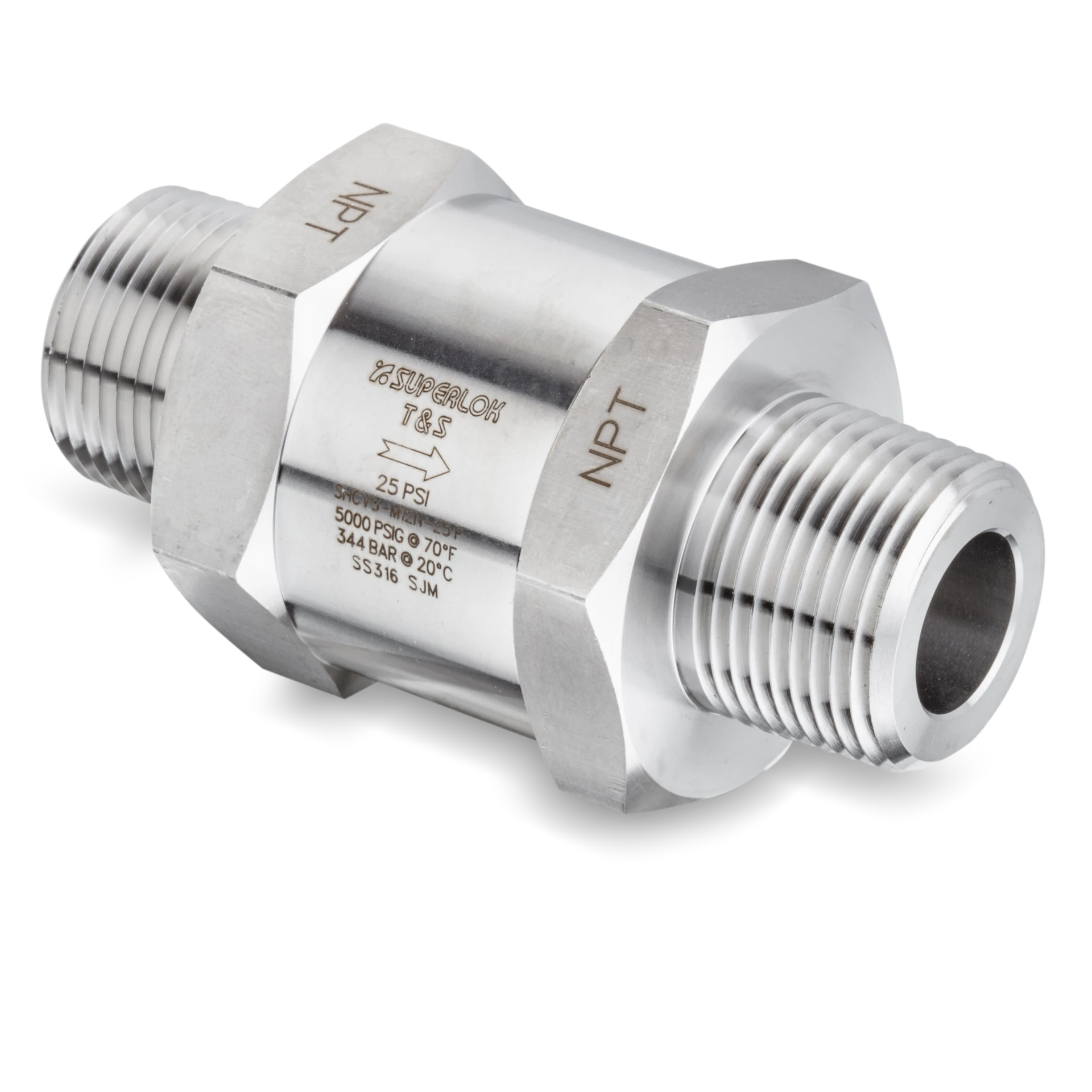

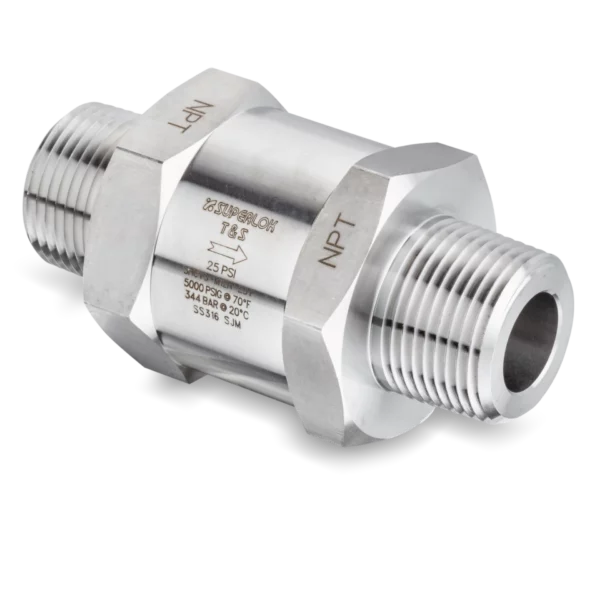

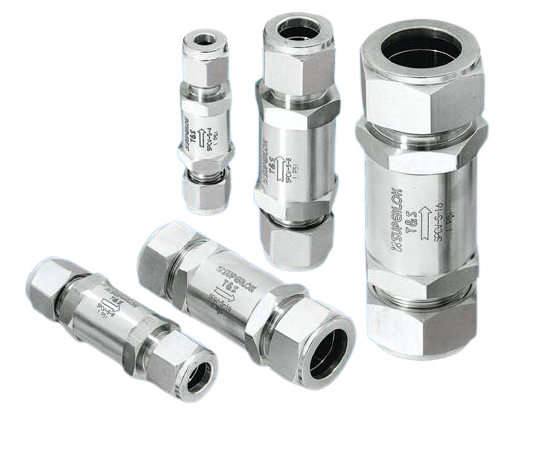

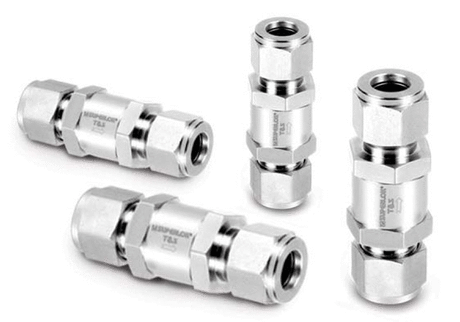

SHCV Check Valves
$57.68 – $363.61
See individual part details below
Access our SHCV high pressure check valves rated for demanding applications up to 6,000 psig. These precision high pressure check valves feature 316 stainless steel bodies and FKM seals for temperatures to 375°F. Browse below to request a quote for these factory-tested components.
Looking for Swagelok® alternatives? Enter a part number in our search to find compatible alternatives.
Description
Pressure rating up to 6,000 psig (413 bar) at 100 ºF(37 ºC) Temperature rating up to 375 ºF (190 ºC) with Fluorocarbon (FKM) seal standard Cracking pressure fixed from 1/3 to 25 psig (0.02 to 1.7 bar) Variety of end connections 316 stainless steel body material as standard Each and every valve is tested at the factory
| Inch/Metric | Inch |
|---|---|
| Superlok Part Type | Check Valve |
| Temperature Rating for Ethylene Propylene | -45 to 148ºC, -50 to 300ºF |
| Temperature Rating for Fluorocarbon (FKM) | -23 to 190ºC, -10 to 375ºF |
| Temperature Rating for Nitrile Butadiene Rubber | -23 to 121ºC, -10 to 250ºF |
Available Sizes
SHCV Check Valves SHCV1-F-4N-1P
SHCV 1/4 in. Female National Pipe Taper (FNPT) #1 psi Nominal Cracking Pressure Spring, 6000 psi Working Pressure Check Valve
$57.68
$57.68
SHCV Check Valves SHCV1-F-4N-1P-E
SHCV 1/4 in. Female National Pipe Taper (FNPT) #1 psi Nominal Cracking Pressure Spring, E.P. O-ring, 6000 psi Working Pressure Check Valve
$57.68
$57.68
SHCV Check Valves SHCV1-M-4N-1P
SHCV 1/4 in. Male National Pipe Taper (MNPT) #1 psi Nominal Cracking Pressure Spring, 6000 psi Working Pressure Check Valve
$57.68
$57.68
SHCV Check Valves SHCV1-M-4N-1P-E
SHCV 1/4 in. Male National Pipe Taper (MNPT) #1 psi Nominal Cracking Pressure Spring, E.P. O-ring, 6000 psi Working Pressure Check Valve
$57.68
$57.68
SHCV Check Valves SHCV1-M-4N-10P
SHCV 1/4 in. Male National Pipe Taper (MNPT) #10 psi Nominal Cracking Pressure Spring, 6000 psi Working Pressure Check Valve
$57.68
$57.68
SHCV Check Valves SHCV1-S-2-1P
SHCV 1/8 in. Tube Outside Diameter D, #1 psi Nominal Cracking Pressure Spring, 6000 psi Working Pressure Check Valve
$67.47
$67.47
SHCV Check Valves SHCV1-S-4-1/3P
SHCV 1/4 in. Tube Outside Diameter D, #1/3 psi Nominal Cracking Pressure Spring, 6000 psi Working Pressure Check Valve
$60.77
$60.77
SHCV Check Valves SHCV1-S-4-1P
SHCV 1/4 in. Tube Outside Diameter D, #1 psi Nominal Cracking Pressure Spring, 6000 psi Working Pressure Check Valve
$60.77
$60.77
SHCV Check Valves SHCV1-S-4-1P-E
SHCV 1/4 in. Tube Outside Diameter D, #1 psi Nominal Cracking Pressure Spring, E.P. O-ring, 6000 psi Working Pressure Check Valve
$60.77
$60.77
SHCV Check Valves SHCV1-S-4-5P
SHCV 1/4 in. Tube Outside Diameter D, #5 psi Nominal Cracking Pressure Spring, 6000 psi Working Pressure Check Valve
$60.77
$60.77
SHCV Check Valves SHCV1-S-4-10P
SHCV 1/4 in. Tube Outside Diameter D, #10 psi Nominal Cracking Pressure Spring, 6000 psi Working Pressure Check Valve
$60.77
$60.77
SHCV Check Valves SHCV1-S-4-10P-E
SHCV 1/4 in. Tube Outside Diameter D, #10 psi Nominal Cracking Pressure Spring, E.P. O-ring, 6000 psi Working Pressure Check Valve
$60.77
$60.77
SHCV Check Valves SHCV1-S-4-25P
SHCV 1/4 in. Tube Outside Diameter D, #25 psi Nominal Cracking Pressure Spring, 6000 psi Working Pressure Check Valve
$60.77
$60.77
SHCV Check Valves SHCV2-F-6N-1P
SHCV 3/8 in. Female National Pipe Taper (FNPT) #1 psi Nominal Cracking Pressure Spring, 5000 psi Nominal Cracking Pressure Check Valve
$91.33
$91.33
SHCV Check Valves SHCV2-F-6N-1P-E
SHCV 3/8 in. Female National Pipe Taper (FNPT) #1 psi Nominal Cracking Pressure Spring, E.P. O-ring, 5000 psi Working Pressure Check Valve
$91.33
$91.33
SHCV Check Valves SHCV2-F-8N-1P
SHCV 1/2 in. Female National Pipe Taper (FNPT) #1 psi Nominal Cracking Pressure Spring, 4600 psi Nominal Cracking Pressure Check Valve
$101.97
$101.97
SHCV Check Valves SHCV2-F-8N-1P-E
SHCV 1/2 in. Female National Pipe Taper (FNPT) #1 psi Nominal Cracking Pressure Spring, E.P. O-ring 4600 psi Working Pressure Check Valve
$101.97
$101.97
SHCV Check Valves SHCV2-F-8N-5P
SHCV 1/2 in. Female National Pipe Taper (FNPT) #5 psi Nominal Cracking Pressure Spring, 4600 psi Working Pressure Check Valve
$101.97
$101.97
SHCV Check Valves SHCV2-F-8N-5P-MR
SHCV 1/2 in. Female National Pipe Taper (FNPT) #5 psi Nominal Cracking Pressure Spring, National Association of Corrosion Engineers Rated, 4600 psi Working Pressure Check Valve
$123.29
$123.29
SHCV Check Valves SHCV2-F-8N-10P
SHCV 1/2 in. Female National Pipe Taper (FNPT) #10 psi Nominal Cracking Pressure Spring, 4600 psi Working Pressure Check Valve
$101.97
$101.97
SHCV Check Valves SHCV2-F-8N-10P-MR
SHCV 1/2 in. Female National Pipe Taper (FNPT) #10 psi Nominal Cracking Pressure Spring, National Association of Corrosion Engineers Rated, 4600 psi Working Pressure Check Valve
$123.29
$123.29
SHCV Check Valves SHCV2-F-8N-25P
SHCV 1/2 in. Female National Pipe Taper (FNPT) #25 psi Nominal Cracking Pressure Spring, 4600 psi Working Pressure Check Valve
$101.97
$101.97
SHCV Check Valves SHCV2-F-8N-25P-MR
SHCV 1/2 in. Female National Pipe Taper (FNPT) #25 psi Nominal Cracking Pressure Spring, National Association of Corrosion Engineers Rated, 4600 psi Working Pressure Check Valve
$123.29
$123.29
SHCV Check Valves SHCV2-M-6N-1P
SHCV 3/8 in. Male National Pipe Taper (MNPT) #1 psi Nominal Cracking Pressure Spring, 6000 psi Working Pressure Check Valve
$91.33
$91.33
SHCV Check Valves SHCV2-M-8N-5P
SHCV 1/2 in. Male National Pipe Taper (MNPT) #5 psi Nominal Cracking Pressure Spring, 6000 psi Working Pressure Check Valve
$101.66
$101.66
SHCV Check Valves SHCV2-S-6-1/3P
SHCV 3/8 in. Tube Outside Diameter D, #1/3 psi Nominal Cracking Pressure Spring, 6000 psi Working Pressure Check Valve
$83.82
$83.82
SHCV Check Valves SHCV2-S-6-1P
SHCV 3/8 in. Tube Outside Diameter D, #1 psi Nominal Cracking Pressure Spring, 6000 psi Working Pressure Check Valve
$83.82
$83.82
SHCV Check Valves SHCV2-S-6-1P-E
SHCV 3/8 in. Tube Outside Diameter D, #1 psi Nominal Cracking Pressure Spring, E.P. O-ring, 6000 psi Working Pressure Check Valve
$83.82
$83.82
SHCV Check Valves SHCV2-S-6-1P-N
SHCV 3/8 in. Tube Outside Diameter D, #1 psi Nominal Cracking Pressure Spring, Buna N Poppet 6000 psi Working Pressure Check Valve
$83.82
$83.82
SHCV Check Valves SHCV2-S-6-5P
SHCV 3/8 in. Tube Outside Diameter D, #5 psi Nominal Cracking Pressure Spring, 6000 psi Working Pressure Check Valve Check Valve
$83.82
$83.82
SHCV Check Valves SHCV2-S-6-5P-E
SHCV 3/8 in. Tube Outside Diameter D, #5 psi Nominal Cracking Pressure Spring, E.P. O-ring, 6000 psi Working Pressure Check Valve
$83.82
$83.82
SHCV Check Valves SHCV2-S-6-5P-MR
SHCV 3/8 in. Tube Outside Diameter D, #5 psi Nominal Cracking Pressure Spring, National Association of Corrosion Engineers Rated, 6000 psi Working Pressure Check Valve
$97.77
$97.77
SHCV Check Valves SHCV2-S-6-10P
SHCV 3/8 in. Tube Outside Diameter D, #10 psi Nominal Cracking Pressure Spring, 6000 psi Working Pressure Check Valve
$83.82
$83.82
SHCV Check Valves SHCV2-S-6-10P-MR
SHCV 3/8 in. Tube Outside Diameter D, #10 psi Nominal Cracking Pressure Spring, National Association of Corrosion Engineers Rated, 6000 psi Working Pressure Check Valve
$97.77
$97.77
SHCV Check Valves SHCV2-S-6-10P-N
SHCV 3/8 in. Tube Outside Diameter D, #10 psi Nominal Cracking Pressure Spring, Buna O-ring, 6000 psi Working Pressure Check Valve
$83.82
$83.82
SHCV Check Valves SHCV2-S-6-25P
SHCV 3/8 in. Tube Outside Diameter D, #25 psi Nominal Cracking Pressure Spring, 6000 psi Working Pressure Check Valve
$83.82
$83.82
SHCV Check Valves SHCV2-S-6-25P-MR
SHCV 3/8 in. Tube Outside Diameter D, #25 psi Nominal Cracking Pressure Spring, National Association of Corrosion Engineers Rated, 6000 psi Working Pressure Check Valve
$97.77
$97.77
SHCV Check Valves SHCV2-S-6-100P
SHCV 3/8 in. Tube Outside Diameter D, #100 psi Nominal Cracking Pressure Spring, 6000 psi Working Pressure Check Valve
$83.82
$83.82
SHCV Check Valves SHCV2-S-8-1/3P
SHCV 1/2 in. Tube Outside Diameter D, #1/3 psi Nominal Cracking Pressure Spring, 6000 psi Working Pressure Check Valve
$94.48
$94.48
SHCV Check Valves SHCV2-S-8-1P
SHCV 1/2 in. Tube Outside Diameter D, #1 psi Nominal Cracking Pressure Spring, 6000 psi Working Pressure Check Valve
$94.48
$94.48
SHCV Check Valves SHCV2-S-8-1P-E
SHCV 1/2 in. Tube Outside Diameter D, #1 psi Nominal Cracking Pressure Spring, E.P. O-ring, 6000 psi Working Pressure Check Valve
$94.48
$94.48
SHCV Check Valves SHCV2-S-8-5P
SHCV 1/2 in. Tube Outside Diameter D, #5 psi Nominal Cracking Pressure Spring, 6000 psi Working Pressure Check Valve
$94.48
$94.48
SHCV Check Valves SHCV2-S-8-5P-E
SHCV 1/2 in. Tube Outside Diameter D, #5 psi Nominal Cracking Pressure Spring, E.P. O-ring, 6000 psi Working Pressure Check Valve
$94.48
$94.48
SHCV Check Valves SHCV2-S-8-5P-MR
SHCV 1/2 in. Tube Outside Diameter D, #5 psi Nominal Cracking Pressure Spring, National Association of Corrosion Engineers Rated, 6000 psi Working Pressure Check Valve
$123.29
$123.29
SHCV Check Valves SHCV2-S-8-10P
SHCV 1/2 in. Tube Outside Diameter D, #10 psi Nominal Cracking Pressure Spring, 6000 psi Working Pressure Check Valve
$94.48
$94.48
SHCV Check Valves SHCV2-S-8-10P-MR
SHCV 1/2 in. Tube Outside Diameter D, #10 psi Nominal Cracking Pressure Spring, National Association of Corrosion Engineers Rated, 6000 psi Working Pressure Check Valve
$123.29
$123.29
SHCV Check Valves SHCV2-S-8-25P
SHCV 1/2 in. Tube Outside Diameter D, #25 psi Nominal Cracking Pressure Spring, 6000 psi Working Pressure Check Valve
$94.48
$94.48
SHCV Check Valves SHCV2-S-8-25P-MR
SHCV 1/2 in. Tube Outside Diameter D, #25 psi Nominal Cracking Pressure Spring, National Association of Corrosion Engineers Rated, 6000 psi Working Pressure Check Valve
$123.29
$123.29
SHCV Check Valves SHCV2-S-8-100P
SHCV 1/2 in. Tube Outside Diameter D, #100 psi Nominal Cracking Pressure Spring, 6000 psi Working Pressure Check Valve
$94.48
$94.48
SHCV Check Valves SHCV3-F-12N-1P
SHCV 3/4 in. Female National Pipe Taper (FNPT) #1 psi Nominal Cracking Pressure Spring, 4300 psi Working Pressure Check Valve
$302.82
$302.82
SHCV Check Valves SHCV3-F-12N-1P-E
SHCV 3/4 in. Female National Pipe Taper (FNPT) #1 psi Nominal Cracking Pressure Spring, E.P. O-ring, 4300 psi Working Pressure Check Valve
$302.82
$302.82
SHCV Check Valves SHCV3-F-16N-1P
SHCV 1 in. Female National Pipe Taper (FNPT) #1 psi Nominal Cracking Pressure Spring, 4100 psi Working Pressure Check Valve
$363.61
$363.61
SHCV Check Valves SHCV3-S-12-1/3P
SHCV 3/4 in. Tube Outside Diameter D, #1/3 psi Nominal Cracking Pressure Spring, 5000 psi Nominal Cracking Pressure Check Valve
$242.26
$242.26
SHCV Check Valves SHCV3-S-12-1/3P-E
SHCV 3/4 in. Tube Outside Diameter D, #1/3 psi Nominal Cracking Pressure Spring, E.P. O-ring, 5000 psi Working Pressure Check Valve
$242.26
$242.26
SHCV Check Valves SHCV3-S-12-1P
SHCV 3/4 in. Tube Outside Diameter D, #1 psi Nominal Cracking Pressure Spring, 5000 psi Nominal Cracking Pressure Check Valve
$242.26
$242.26
SHCV Check Valves SHCV3-S-12-1P-E
SHCV 3/4 in. Tube Outside Diameter D, #1 psi Nominal Cracking Pressure Spring, E.P. O-ring, 5000 psi Nominal Cracking Pressure Check Valve
$242.26
$242.26
SHCV Check Valves SHCV3-S-16-1/3P-N
SHCV 1 in. Tube Outside Diameter D, #1/3 psi Nominal Cracking Pressure Spring, Buna N O-ring, 4700 psi Nominal Cracking Pressure Check Valve
$301.20
$301.20
SHCV Check Valves SHCV3-S-16-1P
SHCV 1 in. Tube Outside Diameter D, #1 psi Nominal Cracking Pressure Spring, 4700 psi Working Pressure Check Valve
$301.20
$301.20
SHCV Check Valves SHCV3-S-16-1P-E
SHCV 1 in. Tube Outside Diameter D, #1 psi Nominal Cracking Pressure Spring, E.P. O-ring, 4700 psi Working Pressure Check Valve
$301.20
$301.20
