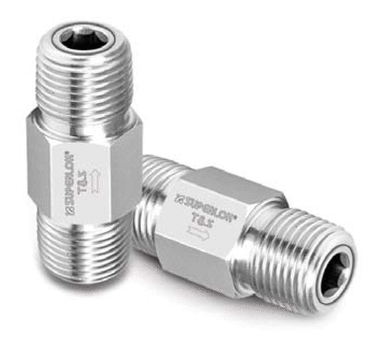

SOACV Adjustable Check Valves
$55.62 – $55.62
See individual part details below
Access our SOACV adjustable check valves engineered for precise flow control up to 6,000 psig. These compact adjustable check valves feature 316 stainless steel construction with FKM seals for temperatures to 375°F. Browse below to request a quote for our factory-tested components.
Looking for Swagelok® alternatives? Enter a part number in our search to find compatible alternatives.
Pressure rating up to 6,000 psig (413 bar) at 100 ºF (37 ºC) Temperature rating up to 375 ºF (190 ºC) with Fluorocarbon (FKM) seal standard Cracking pressure fixed from 1/3 to 25 psig (0.02 to 1.7 bar) Variety of end connections 316 stainless steel body material as standard Each and every valve is tested at the factory
| Back Pressure at 70 (20 ºC) Temperature | 206bar, 3000psig |
|---|---|
| Cv Coefficient | 0.35 |
| End Type | Male National Pipe Thread (MNPT) |
| End Type 2 | Male National Pipe Thread (MNPT) |
| Inch/Metric | Inch |
| Inlet | 1/4mm |
| Nominal Cracking Pressure | 0.2 to 41.3bar, 3 to 600psig |
| Operating Pressure [Min] | 206bar, 3000psig |
| Outlet | 1/4mm |
| Superlok Part Type | Check Valve |
| Temperature Rating for Fluorocarbon (FKM) | -23 to 190ºC, -10 to 375ºF |
| Temperature Rating for Nitrile Butadiene Rubber | -23 to 121ºC, -10 to 250ºF |

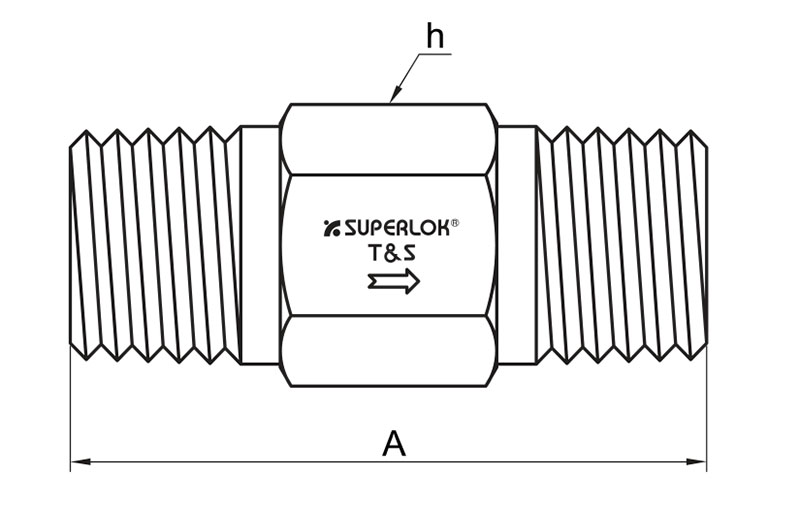

| Dimension A | 41.1mm |
|---|---|
| Dimension h (HEX) | 9/16in, 14.3mm |
SOACV Adjustable Check Valves SOACV-M-4N-C
SOACV Adjustable Check Valves SOACV1-M-4N-A
SOACV Adjustable Check Valves SOACV1-M-4N-B
