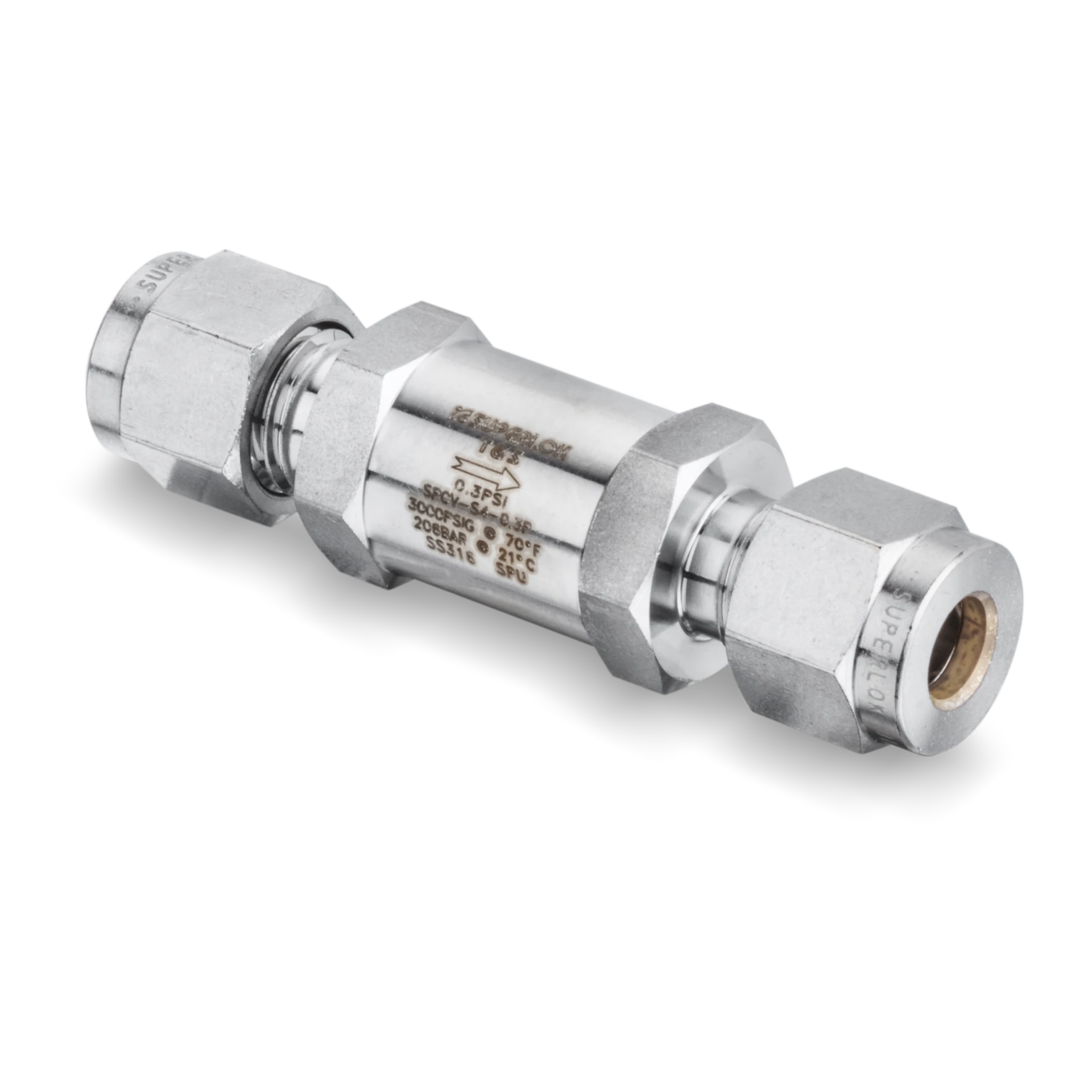

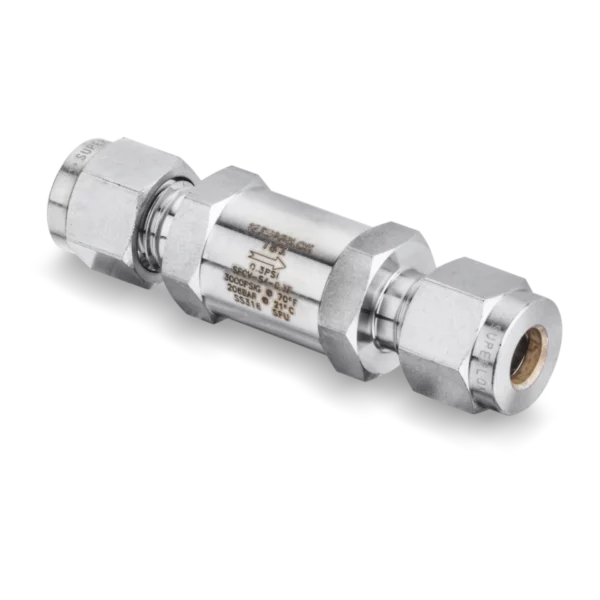

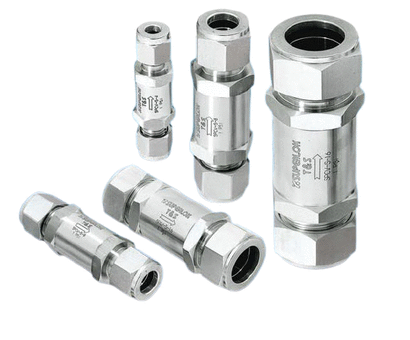

SPCV Check Valves
$48.23 – $99.50
See individual part details below
Access our complete line of SPCV Check Valves featuring fixed cracking pressure designs. Our selection includes valves rated up to 3000 psig at 70°F with Fluorocarbon (FKM) o-ring variety of end connections for your fluid system. Browse below to instantly request a quote or purchase the check valves that are factory tested for reliability.
Looking for Swagelok® alternatives? Enter a part number in our search to find compatible alternatives.
Description
Fixed cracking pressure. Pressure rating up to 3000 psig at 70 ºF (21 ºC) Temperature rating up to 375 ºF (191 ºC) with Fluorocarbon (FKM) o-ring Variety of end connections. Each and every valves are tested at the factory
| Inch/Metric | Inch |
|---|---|
| Superlok Part Type | Check Valve |
| Temperature Rating for Buna N | -23 to 121ºC, -10 to 250ºF |
| Temperature Rating for Ethylene Propylene | -57 to 121ºC, -70 to 250ºF |
| Temperature Rating for Fluorocarbon (FKM) | -23 to 190ºC, -10 to 375ºF |
| Temperature Rating for Kalrez | -26 to 260ºC, -15 to 500ºF |
| Temperature Rating for Neoprene | -37 to 107ºC, -35 to 225ºF |
Available Sizes
SPCV Check Valves SPCV-F-4N-1P
SPCV 1/4 in. Female National Pipe Taper (FNPT), #1 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure Check Valve
$52.58
$52.58
SPCV Check Valves SPCV-S-2-1P
SPCV 1/8 in. Tube Outside Diameter D #1 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure Check Valve
$58.77
$58.77
SPCV Check Valves SPCV-S-2-3P
SPCV 1/8 in. Tube Outside Diameter D, #3 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure Check Valve
$58.77
$58.77
SPCV Check Valves SPCV-S-4-1/3
SPCV 1/4 in. Tube Outside Diameter D, #1/3 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure Check Valve
$48.23
$48.23
SPCV Check Valves SPCV-S-4-1P
SPCV 1/4 in. Tube Outside Diameter D, #1 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure Check Valve
$48.23
$48.23
SPCV Check Valves SPCV-S-4-3P
SPCV 1/4 in. Tube Outside Diameter D, #3 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure Check Valve
$48.23
$48.23
SPCV Check Valves SPCV-S-4-5P
SPCV 1/4 in. Tube Outside Diameter D, #5 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure Check Valve
$48.23
$48.23
SPCV Check Valves SPCV-S-4-10P
SPCV 1/4 in. Tube Outside Diameter D, #10 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure Check Valve
$48.23
$48.23
SPCV Check Valves SPCV-S-4-25P
SPCV 1/4 in. Tube Outside Diameter D, #25 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure Check Valve
$48.23
$48.23
SPCV Check Valves SPCV-S-6-1/3P
SPCV 3/8 in. Tube Outside Diameter D, #1/3 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure Check Valve
$88.58
$88.58
SPCV Check Valves SPCV-S-6-1P
SPCV 3/8 in. Tube Outside Diameter D, #1 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure Check Valve
$88.58
$88.58
SPCV Check Valves SPCV-S-6-10P
SPCV 3/8 in. Tube Outside Diameter D, #10 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure Check Valve
$88.58
$88.58
SPCV Check Valves SPCV-S-6-25P
SPCV 3/8 in. Tube Outside Diameter D, #25 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure Check Valve
$88.58
$88.58
SPCV Check Valves SPCV-S-8-1/3P
SPCV 1/2 in. Tube Outside Diameter D, #1/3 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure Check Valve
$99.50
$99.50
SPCV Check Valves SPCV-S-8-1P
SPCV 1/2 in. Tube Outside Diameter D, #1 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure Check Valve
$99.50
$99.50
SPCV Check Valves SPCV-S-8-10P
SPCV 1/2 in. Tube Outside Diameter D, #10 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure Check Valve
$99.50
$99.50
SPCV Check Valves SPCV-S-8-25P
SPCV 1/2 in. Tube Outside Diameter D, #25 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure Check Valve
$99.50
$99.50
