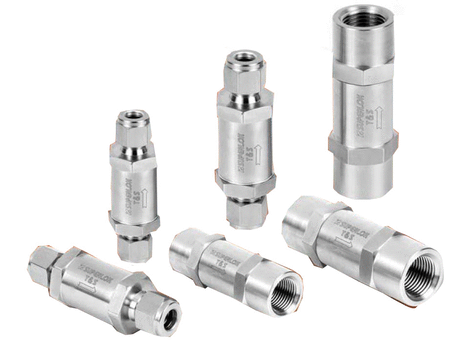

SIF Inline Filters
$54.59 – $121.85
See individual part details below
Access our SIF inline filters engineered for compact system filtration. Our selection of inline filters features stainless steel construction with replaceable elements. Browse below to instantly request quotes or purchase the component you need.
Looking for Swagelok® alternatives? Enter a part number in our search to find compatible alternatives.
Description
Remove system particulate contaminants. Inline filters are for use where space is limited. Replaceable filter element. Maximum operating pressure : 3000 psi at 70 ºF (21 ºC) Operating temperature range : -20 ºF to 900 ºF (-28 ºC to 482 ºC ) with SS316 body 1/8 to 1/2 in. and 3 to 10 mm end connections.
| Inch/Metric | Inch |
|---|---|
| Operating Pressure [Max] | 0.34,0.68,1.0bar, 5,10,15psig |
| Pressure Drop | 0.68,3.4,6.8bar, 10,50,100psig |
| Superlok Part Type | Filter |
Available Sizes
SIF Inline Filters SIF1S2-7
SIF 1/8 in. Tube Outside Diameter D, 7 Micron Inlet Inline Filter
$54.59
$54.59
SIF Inline Filters SIF2F-4N-60
SIF 1/4 in. Female National Pipe Taper (FNPT), 60 Micron Inlet Inline Filter
$71.25
$71.25
SIF Inline Filters SIF2S4-.5
SIF 1/4 in. Tube Outside Diameter D, 0.5 Micron Inlet Inline Filter
$59.74
$59.74
SIF Inline Filters SIF2S4-2
SIF 1/4 in. Tube Outside Diameter D, 2 Micron Inlet Inline Filter
$59.74
$59.74
SIF Inline Filters SIF2S4-60
SIF 1/4 in. Tube Outside Diameter D, 60 Micron Inlet Inline Filter
$59.74
$59.74
SIF Inline Filters SIF3S6-.5
SIF 3/8 in. Tube Outside Diameter D, 0.5 Micron Inlet Inline Filter
$97.00
$97.00
SIF Inline Filters SIF3S6-2
SIF 3/8 in. Tube Outside Diameter D, 2 Micron Inlet Inline Filter
$97.00
$97.00
$97.00
$97.00
$121.85
$121.85
