SM2V 2-Valve Manifold Valves
$199.00 – $248.75
See individual part details below
Access our complete line of 2 valve manifold series rated for 6000 psig applications. These high-pressure manifold 2 valve configurations feature stainless steel construction. Browse below to explore our designs or request a quote options.
Looking for Swagelok® alternatives? Enter a part number in our search to find compatible alternatives.
Description

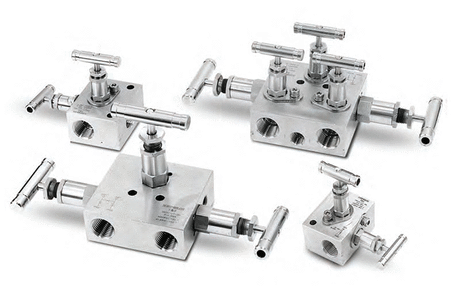

2-, 3-, and 5-valves Instrument manifolds valves Pressure Rating up to 6000 psig (413 bar) at 100 ºF(37 ºC) Temperature up to 1200 ºF (648 ºC) with optional Grafoil packing All 316 stainless steel construction with PTFE packing
| Inch/Metric | Inch |
|---|---|
| Orifice | 0.125in, 3.2mm |
| Superlok Part Type | Manifold Valve |
Available Sizes
SM2V 2-Valve Manifold Valves SM2V-F-8N

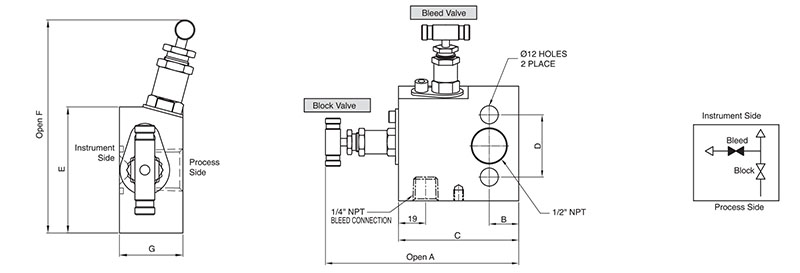

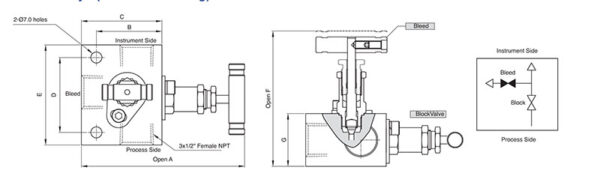

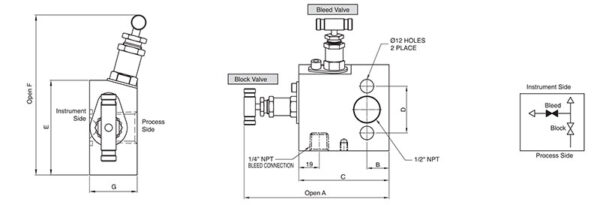

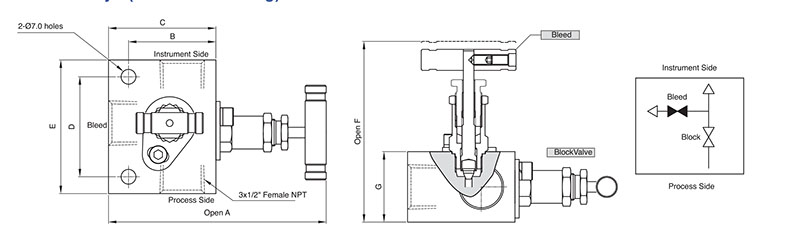

SM2V 1/2 in. Female National Pipe Taper (FNPT) Thread, Horizontal Style, Remote Mount, 6000 psi Pressure Rating Valve Manifold Valve
$199.00
$199.00
SM2V 2-Valve Manifold Valves SM2V-F-8N-G
SM2V 1/2 in. Female National Pipe Taper (FNPT) Thread, Grafoil Packaging, Remote Mount, 6000 psi Pressure Rating Valve Manifold Valve
$210.89
$210.89
SM2V 2-Valve Manifold Valves SM2VD-F-8N

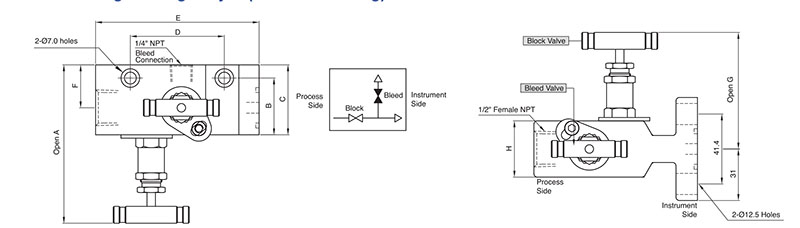

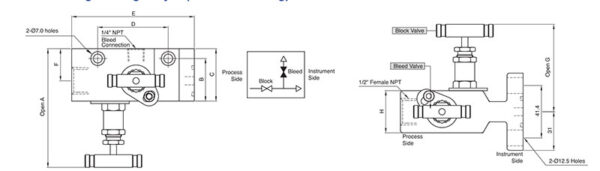

SM2V 1/2 in. Female National Pipe Taper (FNPT) Thread x Flange, Vertical Style, Direct Mount, 6000 psi Pressure Rating Valve Manifold Valve
$248.75
$248.75
SM2V 2-Valve Manifold Valves SM2VF-F-8N-G
SM2V 1/2 in. Female National Pipe Taper (FNPT) Thread x Flange, Grafoil Packaging, Direct Mount, 6000 psi Pressure Rating Valve Manifold Valve
$248.75
$248.75
