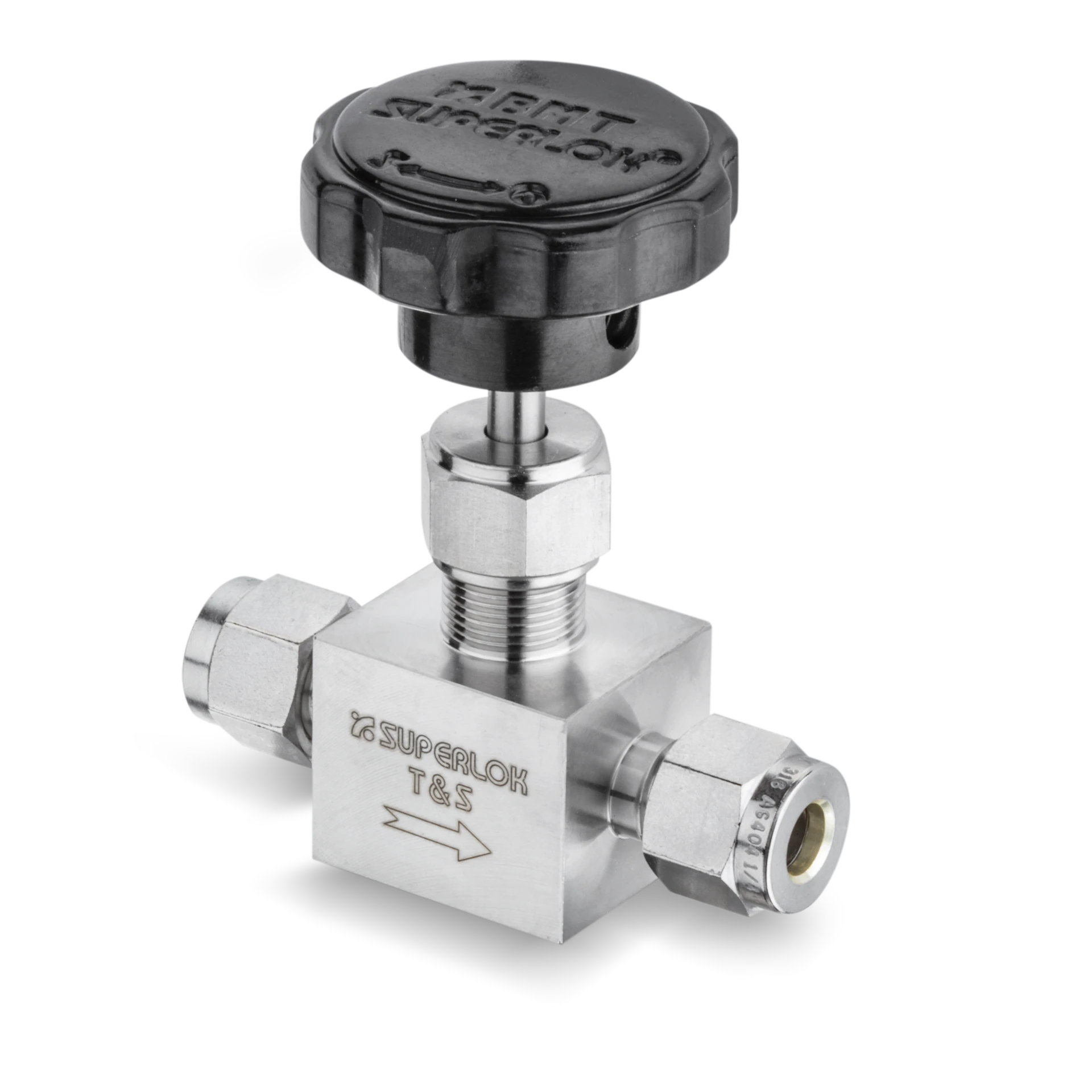

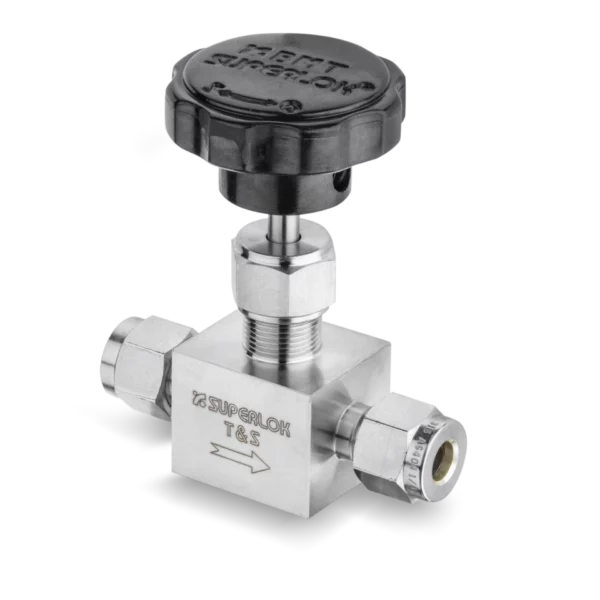

SBNV Needle Valves
$84.87 – $180.61
See individual part details below
Access our integral bonnet needle valve featuring durable bar stock construction and precision engineering. These specialized needle valves deliver optimal flow control with low operating torques and versatile connections. Each bonnet needle valve undergoes factory testing. Browse below to purchase or request a quote for your exact specifications.
Looking for Swagelok® alternatives? Enter a part number in our search to find compatible alternatives.
Description

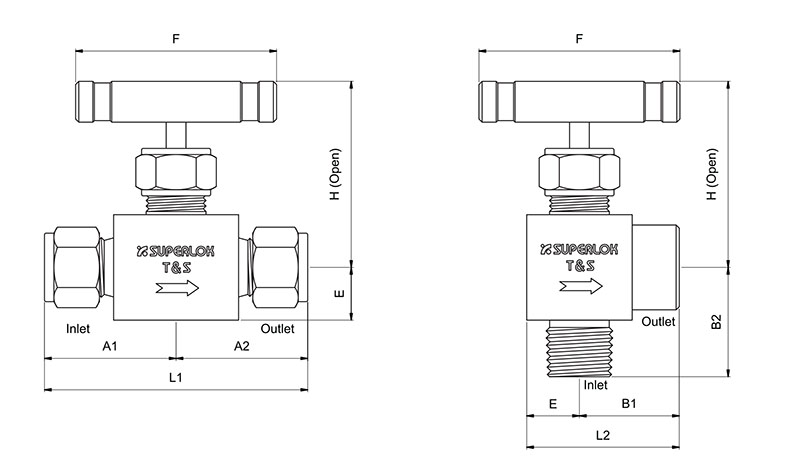

Integral bonnet design Bar stock body Compact design Low operating torques Variety of End Connections Straight and Angle flow patterns Each and every valve is tested at the factory
| Inch/Metric | Inch |
|---|---|
| Pressure Rating at 100 (38 ºC) Temperature | 413bar, 6000psig |
| Superlok Part Type | Needle Valve |
| Temperature Rating with Polytetrafluoroethylene (PTFE) Packing | -54 to 232ºC |
Available Sizes
SBNV Needle Valves SBNV1-F-4N
SBNV 1/4 in. Female National Pipe Taper (FNPT), -65 to 450 ºF Temperature Rating, Vee Tip, 6000 psi Pressure Rating Needle Valve
$84.87
$84.87
SBNV Needle Valves SBNV1-F-4N-MR
SBNV 1/4 in. Female National Pipe Taper (FNPT), -65 to 450 ºF Temperature Rating, Vee Tip, National Association of Corrosion Engineers (NACE) Rated, 6000 psi Pressure Rating Needle Valve
$124.27
$124.27
SBNV Needle Valves SBNV1-MF-4N
SBNV 1/4 in. Male National Pipe Taper (MNPT) x 1/4 in. Female National Pipe Taper (FNPT), -65 F to 450 ºF Temperature Rating, Vee Tip, 6000 psi Pressure Rating Needle Valve
$84.87
$84.87
SBNV Needle Valves SBNV1-S-4
SBNV 1/4 in. Outside Diameter, -65 to 450 ºF Temperature Rating, Vee Tip, Bar Handle, 6000 psi Pressure Rating Needle Valve
$97.85
$97.85
SBNV Needle Valves SBNV1-S-4-SS-KH
SBNV 1/4 in. Outside Diameter, Soft Stem Tip, Phenolic Handle, 6000 psi Pressure Rating Needle Valve
$97.85
$97.85
SBNV Needle Valves SBNV2-F-8N
SBNV 1/2 in. Female National Pipe Taper (FNPT), -65 to 450 ºF Temperature Rating, Vee Tip, Bar Handle, 6000 psi Pressure Rating Needle Valve
$133.39
$133.39
SBNV Needle Valves SBNV2-F-8N-MR
SBNV 1/2 in. Female National Pipe Taper (FNPT), -65 to 450 ºF Temperature Rating, Vee Tip, National Association of Corrosion Engineers (NACE) Rated, 6000 psi Pressure Rating Needle Valve
$180.61
$180.61
SBNV Needle Valves SBNV2-MF-8N
SBNV 1/2 in. Male National Pipe Taper (MNPT) x 1/4 in. Female National Pipe Taper (FNPT), -65 F to 450 ºF Temperature Rating, Vee Tip, 6000 psi Pressure Rating Needle Valve
$130.23
$130.23
SBNV Needle Valves SBNV2-S-6
SBNV 3/8 in. Outside Diameter, -65 to 450 ºF Temperature Rating, Vee Tip, Bar Handle, 6000 psi Pressure Rating Needle Valve
$140.60
$140.60
SBNV Needle Valves SBNV2-S-8
SBNV 1/2 in. Outside Diameter, -65 to 450 ºF Temperature Rating, Vee Tip, Bar Handle, 6000 psi Pressure Rating Needle Valve
$138.35
$138.35
