SHBNV1-F-4N

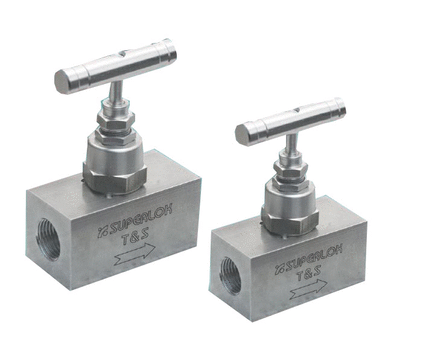

SHBNV 1/4 in. Female National Pipe Taper (FNPT) Thread x 1/4 in. Female National Pipe Taper (FNPT) Thread, -65 to 450 ºF Temperature Rating, Vee Tip, 10,000 psi Pressure Rating High Pressure Bar Stock Needle Valve
Description
SHBNV 1/4 in. Female National Pipe Taper (FNPT) Thread x 1/4 in. Female National Pipe Taper (FNPT) Thread, -65 to 450 ºF Temperature Rating, Vee Tip, 10,000 psi Pressure Rating High Pressure Bar Stock Needle Valve
Bar Stock Body Compact design Low operating torques Variety of End Connection Straight and angle flow patterns Each and every valve tested at the factory
| Cv Coefficient | 0.52 |
|---|---|
| End Size | 44200in |
| End Size 2 | 44200in |
| End Type | Female National Pipe Thread (FNPT) |
| End Type 2 | Female National Pipe Thread (FNPT) |
| Inch/Metric | Inch |
| Orifice Diameter | 5mm |
| Pressure Rating at 100 (38 ºC) Temperature | 689bar, 10000psig |
| Temperature Rating with Polytetrafluoroethylene (PTFE) Packing | -54 to 232ºC, 65 to 450ºF |
| Dimension A1 | 38.0mm |
|---|---|
| Dimension A2 | 38.0mm |
| Dimension B1 | 38.0mm |
| Dimension B2 | 38.0mm |
| Dimension E | 19.0mm |
| Dimension F | 64.0mm |
| Dimension H | 87.5mm |
| Dimension L1 | 76.0mm |
| Dimension L2 | 57.0mm |
| Dimension Q | 38.0mm |
