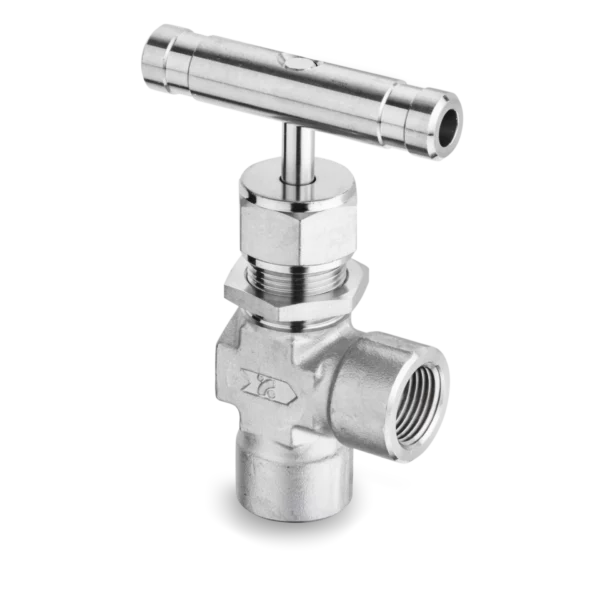

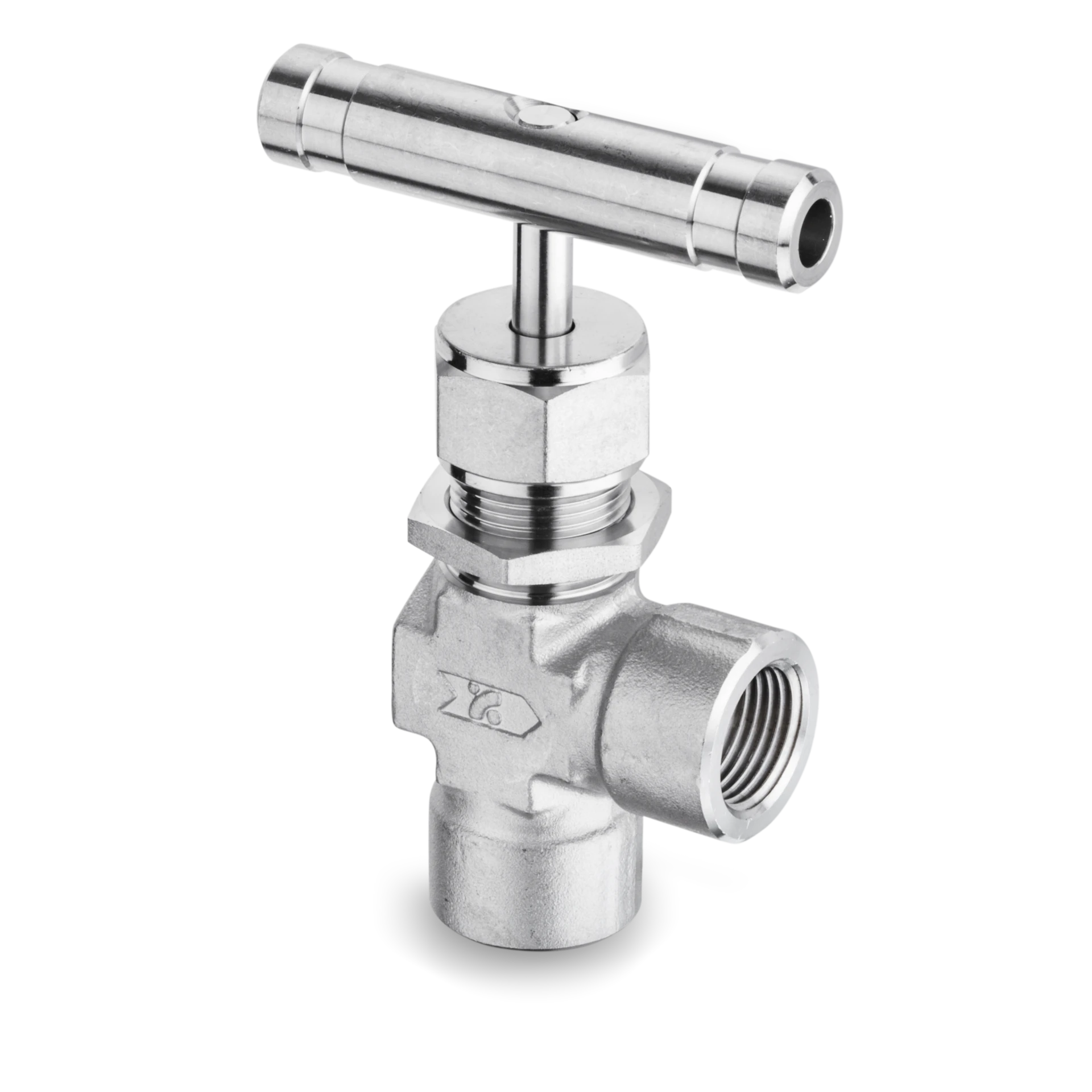

SINV Needle Valves
$61.65 – $248.75
See individual part details below
Access our SINV integral bonnet needle valve series featuring low-torque operation. Our selection of integral bonnet needle valves includes straight and angle patterns for your fluid system. Browse below to request a quote for the component you need.
Looking for Swagelok® alternatives? Enter a part number in our search to find compatible alternatives.
Description

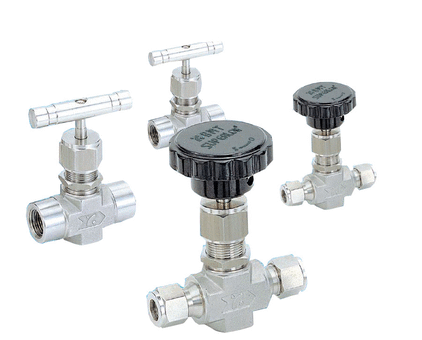

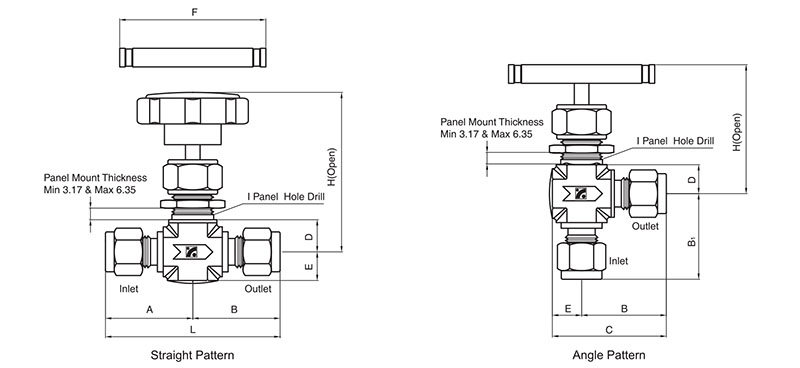

Compact design Low operating torques Panel mountable Variety of stem tips Variety of End Connections Straight and Angle flow patterns Each and every valve is tested at the factory
| Inch/Metric | Inch |
|---|---|
| Pressure Rating at 100 (38 ºC) Temperature | 345bar, 5000psig |
| Superlok Part Type | Needle Valve |
| Temperature Rating with Polyether Ether Ketone (PEEK) Packing | 315ºC, 600ºF |
| Temperature Rating with Polytetrafluoroethylene (PTFE) Packing | -54 to 232ºC, -65 to 450ºF |
Available Sizes
SINV Needle Valves SINV1-F-2N-RS-KH
SINV 1/8 in. Female National Pipe Taper (FNPT) Thread, Regulating Stem, Phenolic Handle, 5000 psi Pressure Rating Needle Valve
$68.13
$68.13
SINV Needle Valves SINV1-M-2N-A-RS
SINV 1/8 in. Male National Pipe Taper (MNPT) Thread, Angle Pattern, Regulating Stem, 5000 psi Pressure Rating Needle Valve
SINV Needle Valves SINV1-S-2
SINV 1/8 in. Outside Diameter, Bar Handle, Vee Tip Stem, 5000 psi Pressure Rating Needle Valve
$67.60
$67.60
SINV Needle Valves SINV1-S-2-RS
SINV 1/8 in. Outside Diameter, Bar Handle, Regulating Stem, 5000 psi Pressure Rating Needle Valve
$67.60
$67.60
SINV Needle Valves SINV2-M-4N-KH-A-RS-BRAS
SINV 1/4 in. Male National Pipe Taper (MNPT) Thread, Angle Pattern, Brass, 3000 psi Pressure Rating Needle Valve
SINV Needle Valves SINV2-M-4N-KH-BRAS
SINV 1/4 in. Male National Pipe Taper (MNPT) Thread, Angle Pattern, Brass, 3000 psi Pressure Rating Needle Valve
SINV Needle Valves SINV2-M-4N-RS
SINV 1/4 in. Male National Pipe Taper (MNPT) Thread, Bar Handle, Regulating Stem, 5000 psi Pressure Rating Needle Valve
$61.65
$61.65
SINV Needle Valves SINV2-M-4N-RS-KH
SINV 1/4in. Male National Pipe Taper (MNPT) Thread, Regulating Stem, Phenolic Handle, 5000 psi Pressure Rating Needle Valve
$61.65
$61.65
SINV Needle Valves SINV2-S-4-RS
SINV 1/4 in. Outside Diameter, Bar Handle, Regulating Stem, 5000 psi Pressure Rating Needle Valve
$65.17
$65.17
SINV Needle Valves SINV2-S-4-RS-KH
SINV 1/4 in. Outside Diameter, Phenolic Handle, Regulating Stem, 5000 psi Pressure Rating Needle Valve
$65.17
$65.17
SINV Needle Valves SINV2-S-4-RS-KH-PE
SINV 1/4 in. Outside Diameter, Phenolic Handle, Peek Seats, Regulating Stem Needle Valve
$77.35
$77.35
SINV Needle Valves SINV2-S-4-RS-MR
SINV 1/4 in. Outside Diameter, Bar Handle, National Association of Corrosion Engineers (NACE) Rated, 5000 psi Pressure Rating Needle Valve
$97.34
$97.34
SINV Needle Valves SINV2-S-4-SS-KH
SINV 1/4 in. Outside Diameter, Soft Seats, Phenolic Handle, 5000 psi Pressure Rating Needle Valve
$65.17
$65.17
SINV Needle Valves SINV3-F-4N-RS
SINV 1/4 in. Male National Pipe Taper (MNPT) Thread, Bar Handle, Regulating Stem, 5000 psi Pressure Rating Needle Valve
$74.84
$74.84
SINV Needle Valves SINV3-F-4N-RS-KH
SINV 1/4 in. Female National Pipe Taper (FNPT) Thread, Regulating Stem, Phenolic Handle, 5000 psi Pressure Rating Needle Valve
$74.84
$74.84
SINV Needle Valves SINV3-F-4N-RS-MR
SINV 1/4 in. Female National Pipe Taper (FNPT) Thread, Regulating Stem, National Association of Corrosion Engineers (NACE) Rated, 5000 psi Pressure Rating Needle Valve
$97.34
$97.34
SINV Needle Valves SINV3-MF-4N-RS
SINV 1/4 in. Male National Pipe Taper (MNPT) Thread x Female National Pipe Taper (FNPT) Thread, Regulating Stem, Bar Handle, 5000 psi Pressure Rating Needle Valve
$80.03
$80.03
SINV Needle Valves SINV3-S-6-RS
SINV 3/8 in. Outside Diameter, Regulating Stem, Bar Handle, 5000 psi Pressure Rating Needle Valve
$88.68
$88.68
SINV Needle Valves SINV3-S-6-RS-KH
SINV 3/8 in. Outside Diameter, Regulating Stem, Phenolic Handle, 5000 psi Pressure Rating Needle Valve
$88.68
$88.68
SINV Needle Valves SINV3-S-6-RS-MR
SINV 3/8 in. Outside Diameter, Regulating Stem, National Association of Corrosion Engineers (NACE) Rated, 5000 psi Pressure Rating Needle Valve
$121.13
$121.13
SINV Needle Valves SINV3-S-8-RS
SINV 1/2 in. Outside Diameter, Regulating Stem, Bar Handle, 5000 psi Pressure Rating Needle Valve
$97.34
$97.34
SINV Needle Valves SINV3-S-8-RS-KH-PE
SINV 1/2 in. Outside Diameter, Peek Seats, Phenolic Handle, 5000 psi Pressure Rating Needle Valve
$101.66
$101.66
SINV Needle Valves SINV4-F-6N-RS
SINV 3/8 in. Male National Pipe Taper (MNPT) Thread, Bar Handle, Regulating Stem, 5000 psi Pressure Rating Needle Valve
$118.21
$118.21
SINV Needle Valves SINV4-F-8N-RS
SINV 1/2 in. Male National Pipe Taper (MNPT) Thread, Bar Handle, Regulating Stem, 5000 psi Pressure Rating Needle Valve
$185.40
$185.40
SINV Needle Valves SINV4-MF-8N-RS
SINV 1/2 in. Male National Pipe Taper (MNPT) Thread x Female National Pipe Taper (FNPT) Thread, Regulating Stem, Bar Handle, 5000 psi Pressure Rating Needle Valve
$211.15
$211.15
SINV Needle Valves SINV4-S-8-RS
SINV 1/2 in. Outside Diameter, Regulating Stem, Bar Handle, 5000 psi Pressure Rating Needle Valve
$211.97
$211.97
SINV Needle Valves SINV4-S-8-RS-KH-A-PE
SINV 1/2 in. Outside Diameter, Angle Pattern, Peek Seats, Phenolic Handle Needle Valve
SINV Needle Valves SINV4-S-8-RS-KH-PE
SINV 1/2 in. Outside Diameter, Peek Seats, Phenolic Handle, 5000 psi Pressure Rating Needle Valve
$248.75
$248.75
SINV Needle Valves SINV4-S-12-RS
SINV 3/4 in. Outside Diameter, Bar Handle, Regulating Stem, 5000 psi Pressure Rating Needle Valve
$224.95
$224.95
