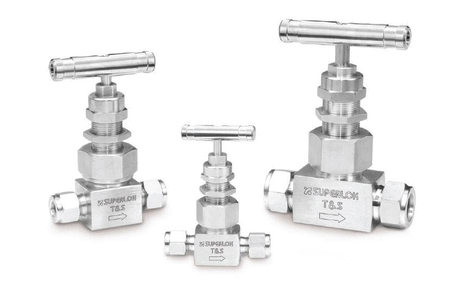

SUNV Union Bonnet Needle Valves

$129.78 – $465.05

Access our SUNV union bonnet needle valve featuring low-torque, panel-mountable design. Our precision union bonnet needle valves offer straight and angle flow patterns for your fluid system. Browse below to request a quote for your component below.

Looking for Swagelok® alternatives? Enter a part number in our search to find compatible alternatives.

Request Quote (805) 658-2043

Description

Compact design Low operating torques Panel mountable Straight and angle flow patterns Non rotating vee stem tip Three stem type are available

Specifications
Inch/Metric	Inch
Superlok Part Type	Needle Valve
Temperature Rating with Graphite Packing	-53 to 648ºC, -65 to 1200ºF
Temperature Rating with Polychlorotrifluoroethylene (PCTFE) Stem Tip	-53 to 93ºC, -65 to 200ºF
Temperature Rating with Polyether Ether Ketone (PEEK) Packing	-53 to 315ºC, -65 to 600ºF

Available Sizes

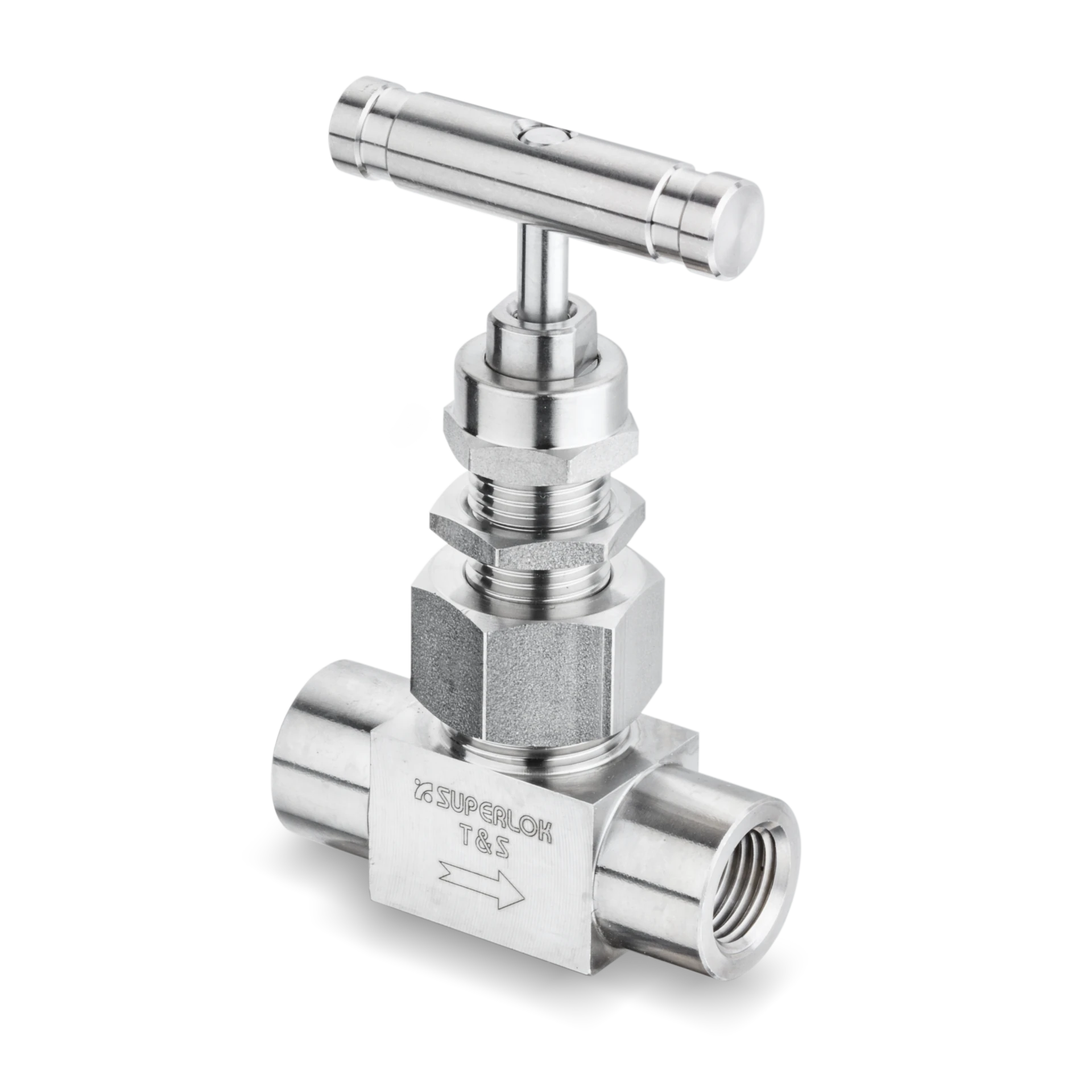

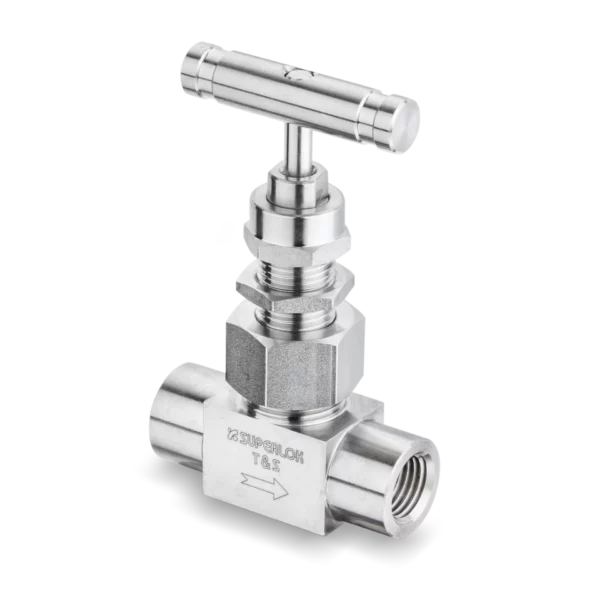

SUNV Union Bonnet Needle Valves SUNV1-F-4N

SUNV 1/4 in. Female National Pipe Taper (FNPT) Thread, Polytetrafluoroethylene (PTFE) Packing, Bar Handle, 6000 psi Pressure Rating Union Bonnet Needle Valve

$129.78

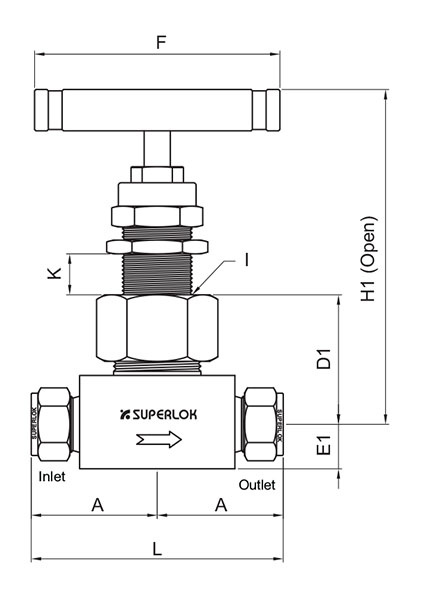

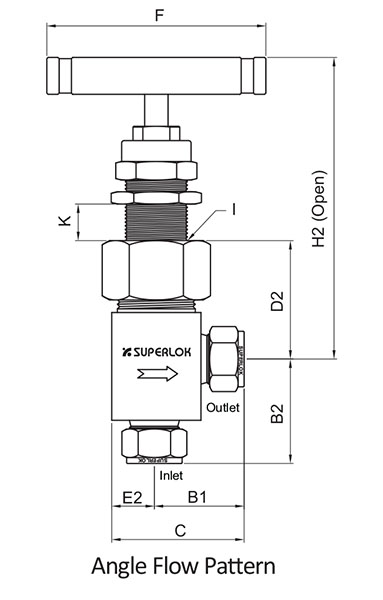

Dimensions
Dimension A	26.2mm
Dimension B1	23.0mm
Dimension B2	25.4mm
Dimension C	32.6mm
Dimension D1	27.8mm
Dimension D2	32.6mm
Dimension E1	9.9mm
Dimension E2	9.9mm
Dimension F	45.0mm
Dimension H1	77.8mm
Dimension H2	82.6mm
Dimension I	15.1mm
Dimension L	52.4mm

Specifications
Cv Coefficient	2.2000000000000002
End Size	44200in
End Size 2	44200in
End Type	Female National Pipe Thread (FNPT)
End Type 2	Female National Pipe Thread (FNPT)
Inch/Metric	Inch
Orifice Diameter	4mm
Temperature Rating with Graphite Packing	-53 to 648ºC, -65 to 1200ºF
Temperature Rating with Polychlorotrifluoroethylene (PCTFE) Stem Tip	-53 to 93ºC, -65 to 200ºF
Temperature Rating with Polyether Ether Ketone (PEEK) Packing	-53 to 315ºC, -65 to 600ºF
Temperature Rating with Polytetrafluoroethylene (PTFE) Packing	-54 to 232ºC, 65 to 450ºF

SUNV Union Bonnet Needle Valves SUNV1-F-4N-GR

SUNV 1/4 in. Female National Pipe Taper (FNPT) Thread, Grafoil Packing, Bar Handle, 6000 psi Pressure Rating Union Bonnet Needle Valve

$136.25

Dimensions
Dimension A	26.2mm
Dimension B1	23.0mm
Dimension B2	25.4mm
Dimension C	32.6mm
Dimension D1	27.8mm
Dimension D2	32.6mm
Dimension E1	9.9mm
Dimension E2	9.9mm
Dimension F	45.0mm
Dimension H1	121.5mm
Dimension H2	126.2mm
Dimension I	15.1mm
Dimension L	52.4mm

Specifications
Cv Coefficient	2.2000000000000002
End Size	44198in
End Size 2	44198in
End Type	Female National Pipe Thread (FNPT)
End Type 2	Female National Pipe Thread (FNPT)
Inch/Metric	Inch
Orifice Diameter	11mm
Temperature Rating with Graphite Packing	-53 to 648ºC, -65 to 1200ºF
Temperature Rating with Polychlorotrifluoroethylene (PCTFE) Stem Tip	-53 to 93ºC, -65 to 200ºF
Temperature Rating with Polyether Ether Ketone (PEEK) Packing	-53 to 315ºC, -65 to 600ºF
Temperature Rating with Polytetrafluoroethylene (PTFE) Packing	ºC, ºF

SUNV Union Bonnet Needle Valves SUNV1-S-4

SUNV 1/4 in. Outside Diameter, Polytetrafluoroethylene (PTFE) Packing, 6000 psi Pressure Rating Union Bonnet Needle Valve

$138.43

Dimensions
Dimension A	31.0mm
Dimension B1	29.4mm
Dimension B2	37.3mm
Dimension C	38.9mm
Dimension D1	27.8mm
Dimension D2	27.8mm
Dimension E1	9.9mm
Dimension E2	9.9mm
Dimension F	45.0mm
Dimension H1	77.8mm
Dimension H2	77.8mm
Dimension I	15.1mm
Dimension L	62.0mm

Specifications
Cv Coefficient	0.35
End Size	44200in
End Size 2	44200in
End Type	Array
End Type 2	Array
Inch/Metric	Inch
Orifice Diameter	4mm
Temperature Rating with Graphite Packing	-53 to 648ºC, -65 to 1200ºF
Temperature Rating with Polychlorotrifluoroethylene (PCTFE) Stem Tip	-53 to 93ºC, -65 to 200ºF
Temperature Rating with Polyether Ether Ketone (PEEK) Packing	-53 to 315ºC, -65 to 600ºF
Temperature Rating with Polytetrafluoroethylene (PTFE) Packing	-54 to 232ºC, 65 to 450ºF

SUNV Union Bonnet Needle Valves SUNV1-S-4-GR

SUNV 1/4 in. Outside Diameter, Grafoil Packing, 6000 psi Pressure Rating Union Bonnet Needle Valve

$143.84

Dimensions
Dimension A	31.0mm
Dimension B1	29.4mm
Dimension B2	37.3mm
Dimension C	38.9mm
Dimension D1	27.8mm
Dimension D2	27.8mm
Dimension E1	9.9mm
Dimension E2	9.9mm
Dimension F	45.0mm
Dimension H1	77.8mm
Dimension H2	77.8mm
Dimension I	15.1mm
Dimension L	62.0mm

Specifications
Cv Coefficient	0.35
End Size	44200in
End Size 2	44200in
End Type	Array
End Type 2	Array
Inch/Metric	Inch
Orifice Diameter	4mm
Temperature Rating with Graphite Packing	-53 to 648ºC, -65 to 1200ºF
Temperature Rating with Polychlorotrifluoroethylene (PCTFE) Stem Tip	-53 to 93ºC, -65 to 200ºF
Temperature Rating with Polyether Ether Ketone (PEEK) Packing	-53 to 315ºC, -65 to 600ºF
Temperature Rating with Polytetrafluoroethylene (PTFE) Packing	ºC, ºF

SUNV Union Bonnet Needle Valves SUNV2-S-6

SUNV 3/8 in. Outside Diameter, Polytetrafluoroethylene (PTFE) Packing, 6000 psi Pressure Rating Union Bonnet Needle Valve

$192.72

Dimensions
Dimension A	36.5mm
Dimension B1	32.5mm
Dimension B2	42.9mm
Dimension C	45.3mm
Dimension D1	34.1mm
Dimension D2	31.0mm
Dimension E1	12.7mm
Dimension E2	12.7mm
Dimension F	64.0mm
Dimension H1	93.7mm
Dimension H2	90.5mm
Dimension I	15.9mm
Dimension L	73.0mm

Specifications
Cv Coefficient	0.86
End Size	44263in
End Size 2	44263in
End Type	Array
End Type 2	Array
Inch/Metric	Inch
Orifice Diameter	6mm
Temperature Rating with Graphite Packing	-53 to 648ºC, -65 to 1200ºF
Temperature Rating with Polychlorotrifluoroethylene (PCTFE) Stem Tip	-53 to 93ºC, -65 to 200ºF
Temperature Rating with Polyether Ether Ketone (PEEK) Packing	-53 to 315ºC, -65 to 600ºF
Temperature Rating with Polytetrafluoroethylene (PTFE) Packing	-54 to 232ºC, 65 to 450ºF

SUNV Union Bonnet Needle Valves SUNV2-S-6-GR

SUNV 3/8 in. Outside Diameter, Grafoil Packing, 6000 psi Pressure Rating Union Bonnet Needle Valve

$199.00

Dimensions
Dimension A	36.5mm
Dimension B1	32.5mm
Dimension B2	42.9mm
Dimension C	45.3mm
Dimension D1	34.1mm
Dimension D2	31.0mm
Dimension E1	12.7mm
Dimension E2	12.7mm
Dimension F	64.0mm
Dimension H1	93.7mm
Dimension H2	90.5mm
Dimension I	15.9mm
Dimension L	73.0mm

Specifications
Cv Coefficient	0.86
End Size	44263in
End Size 2	44263in
End Type	Array
End Type 2	Array
Inch/Metric	Inch
Orifice Diameter	6mm
Temperature Rating with Graphite Packing	-53 to 648ºC, -65 to 1200ºF
Temperature Rating with Polychlorotrifluoroethylene (PCTFE) Stem Tip	-53 to 93ºC, -65 to 200ºF
Temperature Rating with Polyether Ether Ketone (PEEK) Packing	-53 to 315ºC, -65 to 600ºF
Temperature Rating with Polytetrafluoroethylene (PTFE) Packing	ºC, ºF

SUNV Union Bonnet Needle Valves SUNV2-S-8

SUNV 1/2 in. Outside Diameter, Polytetrafluoroethylene (PTFE) Packing, 6000 psi Pressure Rating Union Bonnet Needle Valve

$205.05

Dimensions
Dimension A	38.9mm
Dimension B1	34.9mm
Dimension B2	42.1mm
Dimension C	47.6mm
Dimension D1	34.1mm
Dimension D2	37.3mm
Dimension E1	12.7mm
Dimension E2	12.7mm
Dimension F	64.0mm
Dimension H1	93.7mm
Dimension H2	90.5mm
Dimension I	15.9mm
Dimension L	77.8mm

Specifications
Cv Coefficient	0.86
End Size	44198in
End Size 2	44198in
End Type	Array
End Type 2	Array
Inch/Metric	Inch
Orifice Diameter	6mm
Temperature Rating with Graphite Packing	-53 to 648ºC, -65 to 1200ºF
Temperature Rating with Polychlorotrifluoroethylene (PCTFE) Stem Tip	-53 to 93ºC, -65 to 200ºF
Temperature Rating with Polyether Ether Ketone (PEEK) Packing	-53 to 315ºC, -65 to 600ºF
Temperature Rating with Polytetrafluoroethylene (PTFE) Packing	-54 to 232ºC, 65 to 450ºF

SUNV Union Bonnet Needle Valves SUNV2-S-8-GR

SUNV 1/2 in. Outside Diameter, Grafoil Packing, 6000 psi Pressure Rating Union Bonnet Needle Valve

$215.87

Dimensions
Dimension A	38.9mm
Dimension B1	34.9mm
Dimension B2	42.1mm
Dimension C	47.6mm
Dimension D1	34.1mm
Dimension D2	37.3mm
Dimension E1	12.7mm
Dimension E2	12.7mm
Dimension F	64.0mm
Dimension H1	93.7mm
Dimension H2	90.5mm
Dimension I	26.2mm
Dimension L	77.8mm

Specifications
Cv Coefficient	2.2000000000000002
End Size	44198in
End Size 2	44198in
End Type	Array
End Type 2	Array
Inch/Metric	Inch
Orifice Diameter	6mm
Temperature Rating with Graphite Packing	-53 to 648ºC, -65 to 1200ºF
Temperature Rating with Polychlorotrifluoroethylene (PCTFE) Stem Tip	-53 to 93ºC, -65 to 200ºF
Temperature Rating with Polyether Ether Ketone (PEEK) Packing	-53 to 315ºC, -65 to 600ºF
Temperature Rating with Polytetrafluoroethylene (PTFE) Packing	ºC, ºF

SUNV Union Bonnet Needle Valves SUNV3-F-8N

SUNV 1/2 in. Female National Pipe Taper (FNPT) Thread, Polytetrafluoroethylene (PTFE) Packing, Bar Handle, 6000 psi Pressure Rating Union Bonnet Needle Valve

$281.19

Dimensions
Dimension A	39.7mm
Dimension B1	33.3mm
Dimension B2	39.7mm
Dimension C	50.8mm
Dimension D1	46.1mm
Dimension D2	50.8mm
Dimension E1	15.9mm
Dimension E2	17.5mm
Dimension F	89.0mm
Dimension H1	123.9mm
Dimension H2	mm
Dimension I	26.2mm
Dimension L	79.4mm

Specifications
Cv Coefficient	2.2000000000000002
End Size	44198in
End Size 2	44198in
End Type	Female National Pipe Thread (FNPT)
End Type 2	Female National Pipe Thread (FNPT)
Inch/Metric	Inch
Orifice Diameter	11mm
Temperature Rating with Graphite Packing	-53 to 648ºC, -65 to 1200ºF
Temperature Rating with Polychlorotrifluoroethylene (PCTFE) Stem Tip	-53 to 93ºC, -65 to 200ºF
Temperature Rating with Polyether Ether Ketone (PEEK) Packing	-53 to 315ºC, -65 to 600ºF
Temperature Rating with Polytetrafluoroethylene (PTFE) Packing	-54 to 232ºC, 65 to 450ºF

SUNV Union Bonnet Needle Valves SUNV3-F-8N-GR

SUNV 1/2 in. Female National Pipe Taper (FNPT) Thread, Grafoil Packing, Bar Handle, 6000 psi Pressure Rating Union Bonnet Needle Valve

$287.37

Dimensions
Dimension A	39.7mm
Dimension B1	33.3mm
Dimension B2	39.7mm
Dimension C	50.8mm
Dimension D1	46.1mm
Dimension D2	50.8mm
Dimension E1	15.9mm
Dimension E2	17.5mm
Dimension F	89.0mm
Dimension H1	129.4mm
Dimension H2	mm
Dimension I	26.2mm
Dimension L	79.4mm

Specifications
Cv Coefficient	2.2000000000000002
End Size	44259in
End Size 2	44259in
End Type	Female National Pipe Thread (FNPT)
End Type 2	Female National Pipe Thread (FNPT)
Inch/Metric	Inch
Orifice Diameter	11mm
Temperature Rating with Graphite Packing	-53 to 648ºC, -65 to 1200ºF
Temperature Rating with Polychlorotrifluoroethylene (PCTFE) Stem Tip	-53 to 93ºC, -65 to 200ºF
Temperature Rating with Polyether Ether Ketone (PEEK) Packing	-53 to 315ºC, -65 to 600ºF
Temperature Rating with Polytetrafluoroethylene (PTFE) Packing	ºC, ºF

SUNV Union Bonnet Needle Valves SUNV3-F-12N

SUNV 3/4 in. Female National Pipe Taper (FNPT) Thread, Polytetrafluoroethylene (PTFE) Packing, Bar Handle, 6000 psi Pressure Rating Union Bonnet Needle Valve

$415.30

Dimensions
Dimension A	41.3mm
Dimension B1	mm
Dimension B2	mm
Dimension C	mm
Dimension D1	48.4mm
Dimension D2	mm
Dimension E1	19.9mm
Dimension E2	mm
Dimension F	89.0mm
Dimension H1	mm
Dimension H2	mm
Dimension I	26.2mm
Dimension L	82.6mm

Specifications
Cv Coefficient	2.2000000000000002
End Size	44259in
End Size 2	44259in
End Type	Female National Pipe Thread (FNPT)
End Type 2	Female National Pipe Thread (FNPT)
Inch/Metric	Inch
Orifice Diameter	11mm
Temperature Rating with Graphite Packing	-53 to 648ºC, -65 to 1200ºF
Temperature Rating with Polychlorotrifluoroethylene (PCTFE) Stem Tip	-53 to 93ºC, -65 to 200ºF
Temperature Rating with Polyether Ether Ketone (PEEK) Packing	-53 to 315ºC, -65 to 600ºF
Temperature Rating with Polytetrafluoroethylene (PTFE) Packing	-54 to 232ºC, 65 to 450ºF

SUNV Union Bonnet Needle Valves SUNV3-F-16N

SUNV 1 in. Female National Pipe Taper (FNPT) Thread, Polytetrafluoroethylene (PTFE) Packing, Bar Handle, 6000 psi Pressure Rating Union Bonnet Needle Valve

$465.05

Dimensions
Dimension A	46.0mm
Dimension B1	mm
Dimension B2	mm
Dimension C	mm
Dimension D1	54.0mm
Dimension D2	mm
Dimension E1	25.4mm
Dimension E2	mm
Dimension F	89.0mm
Dimension H1	mm
Dimension H2	mm
Dimension I	26.2mm
Dimension L	92.1mm

Specifications
Cv Coefficient	2.2000000000000002
End Size	1in
End Size 2	1in
End Type	Female National Pipe Thread (FNPT)
End Type 2	Female National Pipe Thread (FNPT)
Inch/Metric	Inch
Orifice Diameter	11mm
Temperature Rating with Graphite Packing	-53 to 648ºC, -65 to 1200ºF
Temperature Rating with Polychlorotrifluoroethylene (PCTFE) Stem Tip	-53 to 93ºC, -65 to 200ºF
Temperature Rating with Polyether Ether Ketone (PEEK) Packing	-53 to 315ºC, -65 to 600ºF
Temperature Rating with Polytetrafluoroethylene (PTFE) Packing	-54 to 232ºC, 65 to 450ºF

SUNV Union Bonnet Needle Valves SUNV3-MF-8N

SUNV 1/2 in. Male National Pipe Taper (MNPT) Thread x 1/2 in. Female National Pipe Taper (FNPT) Thread, Polytetrafluoroethylene (PTFE) Packing, 6000 psi Pressure Rating Union Bonnet Needle Valve

$302.82

Dimensions
Dimension A	39.7mm
Dimension B1	33.3mm
Dimension B2	39.7mm
Dimension C	50.8mm
Dimension D1	46.0mm
Dimension D2	50.8mm
Dimension E1	15.9mm
Dimension E2	17.5mm
Dimension F	89.0mm
Dimension H1	121.5mm
Dimension H2	126.2mm
Dimension I	26.2mm
Dimension L	79.4mm

Specifications
Cv Coefficient	0.35
End Size	44259in
End Size 2	44259in
End Type	Male National Pipe Thread (MNPT)
End Type 2	Female National Pipe Thread (FNPT)
Inch/Metric	Inch
Orifice Diameter	11mm
Temperature Rating with Graphite Packing	-53 to 648ºC, -65 to 1200ºF
Temperature Rating with Polychlorotrifluoroethylene (PCTFE) Stem Tip	-53 to 93ºC, -65 to 200ºF
Temperature Rating with Polyether Ether Ketone (PEEK) Packing	-53 to 315ºC, -65 to 600ºF
Temperature Rating with Polytetrafluoroethylene (PTFE) Packing	ºC, ºF

SUNV Union Bonnet Needle Valves SUNV3-MF-12N

SUNV 3/4 in. Male National Pipe Taper (MNPT) Thread x 3/4 in. Female National Pipe Taper (FNPT) Thread, Polytetrafluoroethylene (PTFE) Packing, 6000 psi Pressure Rating Union Bonnet Needle Valve

$427.79

Dimensions
Dimension A	41.3mm
Dimension B1	mm
Dimension B2	mm
Dimension C	mm
Dimension D1	48.4mm
Dimension D2	mm
Dimension E1	25.4mm
Dimension E2	mm
Dimension F	89.0mm
Dimension H1	123.9mm
Dimension H2	mm
Dimension I	26.2mm
Dimension L	82.6mm

Specifications
Cv Coefficient	0.35
End Size	44200in
End Size 2	44200in
End Type	Female National Pipe Thread (FNPT)
End Type 2	Female National Pipe Thread (FNPT)
Inch/Metric	Inch
Orifice Diameter	4mm
Temperature Rating with Graphite Packing	-53 to 648ºC, -65 to 1200ºF
Temperature Rating with Polychlorotrifluoroethylene (PCTFE) Stem Tip	-53 to 93ºC, -65 to 200ºF
Temperature Rating with Polyether Ether Ketone (PEEK) Packing	-53 to 315ºC, -65 to 600ºF
Temperature Rating with Polytetrafluoroethylene (PTFE) Packing	ºC, ºF

SUNV Union Bonnet Needle Valves SUNV3-S-8-PE

SUNV 1/2 in. Outside Diameter, Peek Packing, -65 to 600 ºF Temperature Rating, 6000 psi Union Bonnet Needle Valve

Dimensions
Dimension A	50.0mm
Dimension B1	43.7mm
Dimension B2	53.2mm
Dimension C	61.1mm
Dimension D1	46.0mm
Dimension D2	47.6mm
Dimension E1	15.9mm
Dimension E2	17.5mm
Dimension F	89.0mm
Dimension H1	121.5mm
Dimension H2	123.1mm
Dimension I	26.2mm
Dimension L	100.0mm

Specifications
Cv Coefficient	2.2000000000000002
End Size	1in
End Size 2	1in
End Type	Female National Pipe Thread (FNPT)
End Type 2	Female National Pipe Thread (FNPT)
Inch/Metric	Inch
Orifice Diameter	11mm
Temperature Rating with Graphite Packing	-53 to 648ºC, -65 to 1200ºF
Temperature Rating with Polychlorotrifluoroethylene (PCTFE) Stem Tip	-53 to 93ºC, -65 to 200ºF
Temperature Rating with Polyether Ether Ketone (PEEK) Packing	-53 to 315ºC, -65 to 600ºF
Temperature Rating with Polytetrafluoroethylene (PTFE) Packing	ºC, ºF

SUNV Union Bonnet Needle Valves SUNV3-S-16

SUNV 1 in. Outside Diameter, Polytetrafluoroethylene (PTFE) Packing, 6000 psi Pressure Rating Union Bonnet Needle Valve

$346.08
