SUNV2-S-6
$192.72

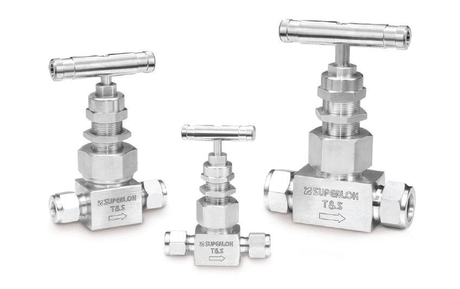

SUNV 3/8 in. Outside Diameter, Polytetrafluoroethylene (PTFE) Packing, 6000 psi Pressure Rating Union Bonnet Needle Valve
Description
SUNV 3/8 in. Outside Diameter, Polytetrafluoroethylene (PTFE) Packing, 6000 psi Pressure Rating Union Bonnet Needle Valve
Compact design Low operating torques Panel mountable Straight and angle flow patterns Non rotating vee stem tip Three stem type are available
| Cv Coefficient | 0.86 |
|---|---|
| End Size | 44263in |
| End Size 2 | 44263in |
| End Type | Array |
| End Type 2 | Array |
| Inch/Metric | Inch |
| Orifice Diameter | 6mm |
| Temperature Rating with Graphite Packing | -53 to 648ºC, -65 to 1200ºF |
| Temperature Rating with Polychlorotrifluoroethylene (PCTFE) Stem Tip | -53 to 93ºC, -65 to 200ºF |
| Temperature Rating with Polyether Ether Ketone (PEEK) Packing | -53 to 315ºC, -65 to 600ºF |
| Temperature Rating with Polytetrafluoroethylene (PTFE) Packing | -54 to 232ºC, 65 to 450ºF |
| Dimension A | 36.5mm |
|---|---|
| Dimension B1 | 32.5mm |
| Dimension B2 | 42.9mm |
| Dimension C | 45.3mm |
| Dimension D1 | 34.1mm |
| Dimension D2 | 31.0mm |
| Dimension E1 | 12.7mm |
| Dimension E2 | 12.7mm |
| Dimension F | 64.0mm |
| Dimension H1 | 93.7mm |
| Dimension H2 | 90.5mm |
| Dimension I | 15.9mm |
| Dimension L | 73.0mm |
