SRVH-MS-8N-8
$222.79

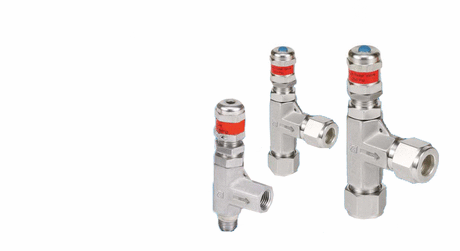

1/2 in. Male National Pipe Taper (MNPT) Thread x 1/2 in. Outside Diameter, No Spring, 6000 psi High Pressure Relief Valve
Description
1/2 in. Male National Pipe Taper (MNPT) Thread x 1/2 in. Outside Diameter, No Spring, 6000 psi High Pressure Relief Valve
Compact design Cracking pressure adjustable externally Lock wire feature secures a given pressure setting Each and every valve is tested at the factory
| Cracking Pressure Range | 15.5 to 414bar, 225 to 6000psig |
|---|---|
| End Size | 44198mm |
| End Size 2 | 44198mm |
| End Type | Array |
| End Type 2 | Array |
| Inch/Metric | Inch |
| Operating Pressure [Max] | 413bar, 6000psig |
| Orifice | 4.8mm |
| Dimension H | 114.0mm |
|---|---|
| Dimension L1 | 46.7mm |
| Dimension L2 | 46.7mm |
