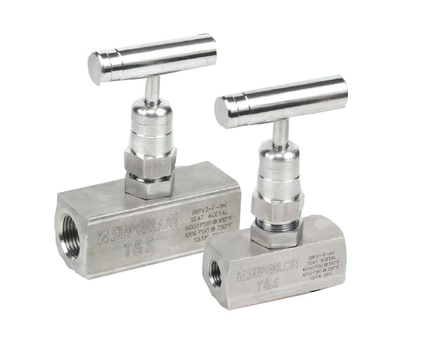

SRPV Rising Plug Valves
$136.27 – $194.67
Description

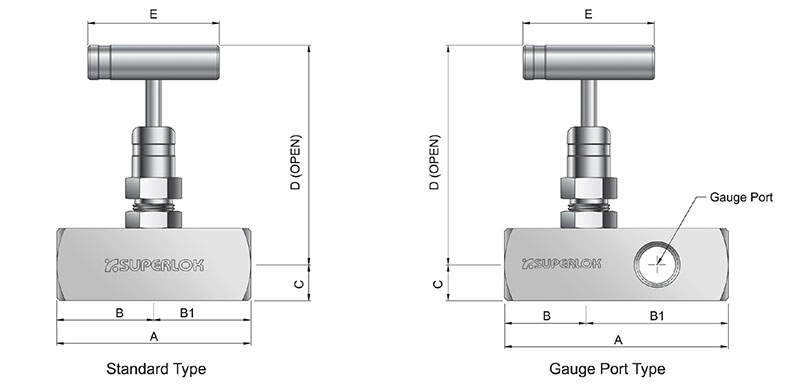

Non-rotating stem tip Straight-through orifice for maximum flow Stem dust seal protects threads from external contamination Replaceable seals, seat and stem tip Panel mounting option Gauge port option
| Inch/Metric | Inch |
|---|---|
| Pressure Rating Acetal at -20 to 100 (-28 to 37 ºC) Temperature | 413bar, 6000psig |
| Pressure Rating Acetal at 200 (93 ºC) Temperature | 182bar, 2650psig |
| Pressure Rating Acetal at 250 (121 ºC) Temperature | 68.9bar, 1000psig |
| Pressure [Max] | 413bar, 6000psig |
| Superlok Part Type | Plug Valve |
Available Sizes
SRPV Rising Plug Valves SRPV1-F-4N
SRPV 1/4 in. Female National Pipe Taper (FNPT), Viton Stem Seal, Acetal Seat, 6000 psi Pressure Rating Inlet Rising Plug Valve
$136.27
$136.27
SRPV Rising Plug Valves SRPV2-F-8N
SRPV 1/2 in. Female National Pipe Taper (FNPT), Viton Stem Seal, Acetal Seat, 6000 psi Pressure Rating Inlet Rising Plug Valve
$157.90
$157.90
SRPV Rising Plug Valves SRPV2-MF-8N
SRPV 1/2 in. Male National Pipe Taper (MNPT) x 1/2 in. Female National Pipe Taper (FNPT), Acetal Seat, 6000 psi Pressure Rating Inlet Rising Plug Valve
$194.02
$194.02
SRPV Rising Plug Valves SRPV2-MF-8N-MR
SRPV 1/2 in. Male National Pipe Taper (MNPT) x 1/2 in. Female National Pipe Taper (FNPT), Acetal Seat, National Association of Corrosion Engineers (NACE) Rated, 6000 psi Pressure Rating Inlet Rising Plug Valve
$194.67
$194.67
