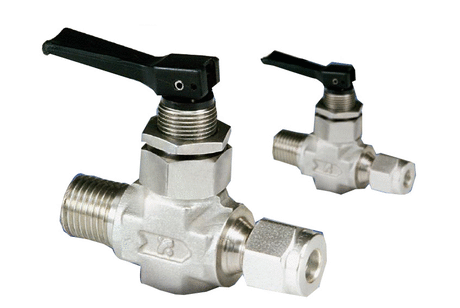

Description
Compact design. Quick acting. Orifice sizes from 0.080 to 0.250 in.(2.0 to 6.4 mm). Flow coefficients (Cv) from 0.11 to 0.70. Straight, angle flow patterns. Superlok® tube fitting, male and female NPT, and Combination of end connections. Each and every valve is tested at the factory.
| Inch/Metric | Inch |
|---|---|
| Operating Temperature [Max] | 93ºC, 200ºF |
| Operating Temperature [Min] | -28ºC, -20ºF |
| Superlok Part Type | Valve |
Available Sizes
STV Toggle Valves STV1-M-2N
STV 1/8 in. Male National Pipe Taper (MNPT) Thread, 300 psi Working Pressure Toggle Valve
$86.52
$86.52
STV Toggle Valves STV1A-S-2
STV 1/8 in. Tube Outside Diameter, Angle Pattern, 300 psi Working Pressure Toggle Valve
$118.97
$118.97
STV Toggle Valves STV2-S-4
STV 1/4 in. Tube Outside Diameter, 300 psi Working Pressure Toggle Valve
$80.03
$80.03
STV Toggle Valves STV2A-S-4
STV 1/4 in. Tube Outside Diameter, Angle Pattern, 300 psi Working Pressure Toggle Valve
$101.97
$101.97
STV Toggle Valves STV3A-S-6
STV 1/8 in. Tube Outside Diameter, Angle Pattern, 300 psi Working Pressure Toggle Valve
$121.55
$121.55
